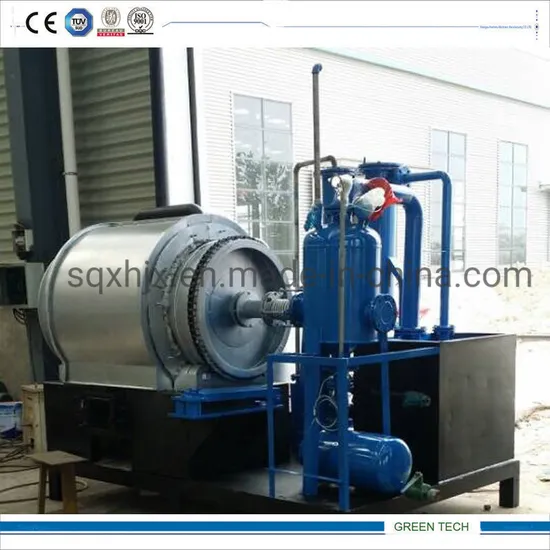

3 Ton Mini Pyrolisis Machine Recycling Tires Waste to Oil

Product Description

1.Technical parameters

NO.	Name	Parameter
1	The raw materials:	waste tyres,/rubber/plastic/oil sludge
2.	output	Fuel oil
3	Daily capacity:	2-3 ton /day
4	The size of reactor (D*L)	1800*4000mm
5	Reactor material	Q345R
6	Average oil productivity:	30%-50%, (for tire )
7	Average carbon productivity:	30%-35% (for tire)
8	Average steel productivity:	10%-15% (for tire)
9	Average waste-gas productivity:	5-8%
10	pyrolysis time	6hours
11	Discharge time	1 hour
12.	Feeding time	1 hour
13	Cooling time	2 hours
14	Working pressure	Normal /slightly negative
15	Power	11 kw
16	Fuel	Coal. Wood, gas etc
17	Working area	300 square meters
18	Total weight	26 000kgs
19	Reactor rotate speed	0.25-0.4/min
20.	Noise	No more than 85 db
	Type	NEW TECH Pollution free

2. Major parts :
reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board
3. Work flow
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4. oil rate

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

5. Plant features:
)Carbon slag using new tech, slag in sealing way, keep sure no carbon powder flay in air, completely pollution free. Carbon slag automatic and slag more fast than normal design
)Improved an simplified design of plant, more easy to use, and cut down plant cost
)All parts including small parts we use high standard material to keep our quality for long term usage.
) Dedust system use latest design, no black smoke emit to air by chimney.
6.oil parameter

project	Tire oil	Plastic oil
Water content	3%-5%	3%-5%
Sulfur content	0.3%-0.5%	0.3%
Density (g/ml)	0.86-0.94	0.84-0.94
Cetane number	30	30
Combustion value (kcal)	9500	9000
Asphalt	≤0.5%	≤0.8%
Ash	≤1%	/
Impurity	1%-3%	/
Solidifying point( ºC)	-10	10
Flash point ( ºC)	30-40	20-35
