Manufacturer Cheap Price CE Approved Hydraulic Manual Grinder Machine Surface Grinding Machine with Factory 618 1224 1230 4080 Sp2502
| US$2,100.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Sp2502
Type
Surface Grinding Machine
Processing Object
Surface
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Table Size
460*180
Max Movement of Working Table
500*190
T -Slot Number*Width
1*14
Max Distance
335
Spindle Motor
1.1kw
Coolant Pump Motor
40W
N.W
650kfg
Package Dimension
1000X1150X1760
Key Word
Surface Grinder Machine
Process Raw Material
Copper, Aluminium,Metal,Steel,Wood
Certificate
CE
Transport Package
Plywood Box
Specification
450X180mm tabke
Trademark
SUMORE
Origin
China
HS Code
8458912090
Production Capacity
10
Product Description
Product DescriptionFactory Direct Sale Low Cost Cheap Price CE Good Quality Surface Grinder SP2502 Manual Grinding Machine Manufacturer manufacturer Cheap Price CE approved hydraulic Surface Grinder machine Manual Grinding Machine factory 618 1224 1230 4080 Sp2502

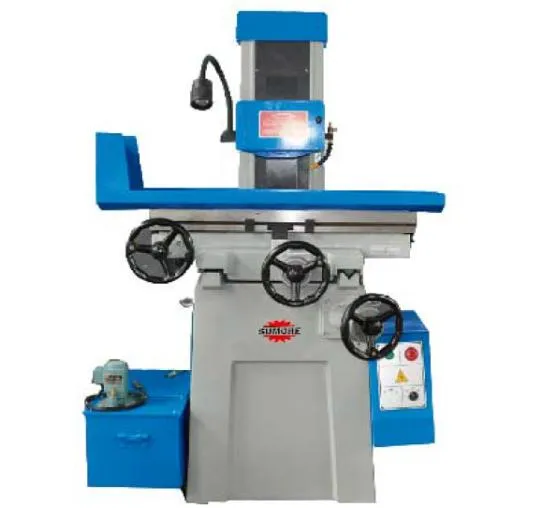

Surface Grinder SP2502(hydrulic grinding machine) is a good quality metal surface grinding machine, which is made in China, but have similar quality as Japan surface grinder. It has good design and high quality.
1. Quality castings and precision ball bearing supporting the spindle
2. Coolant system with nozzle and flow control valve
3. Cast iron machine body and stand for maximum rigidity and smooth operation available
Product Parameters
| Model | SP2502 | |||
| Working table | Table Size (L× W) | mm | 460×180 | |
| Max movement of working table(L× W) | mm | 500×190 | ||
| T -Slot number×width | mm | 1×14 | ||
| Grinding head | Max distance from spindle center to table surface | mm | 335 | |
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ180×13×Φ31.75 | ||
| Wheel speed | 50HZ | r/min | 2850 | |
| 60HZ | 3440 | |||
| Feed amount | Vertical feed on handwheel | Per revolution | mm | 1.25 |
| Per graduation | mm | 0.01 | ||
| Cross feed on handwheel | Per revolution | mm | 2.5 | |
| Per graduation | mm | 0.02 | ||
| Motor power | Spindle motor | kw | 1.1 | |
| Coolant pump motor | w | 40 | ||
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 | |
| Surface roughness | μm | Ra0.32 | ||
| Weight | Net | kg | 650 | |
| Gross | kg | 750 | ||
| Overall dimension(L×W×H) | mm | 1550x1150x1590 | ||
| Package dimension(L×W×H) | mm | 1000x1150x1760 | ||
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
