Food Grade Paper Plate Making Machine

Product Description

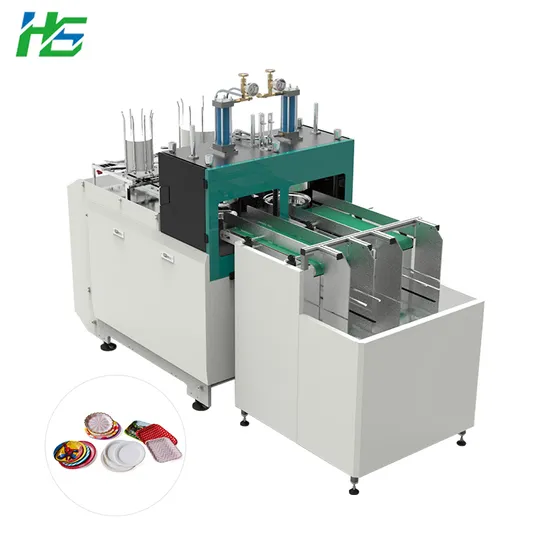

HS-ZPJ500 High Speed Double Station Paper Plate Making Machine
Our Advantages
1. The machine body frame was built by 2 pieces of thicker iron plate and optical axis.
Without welding, higher precision, running stability, long service life.
2. PLC control panel with touch screen.
3. The machine adopts mechanical working in paper-feeding,
it's more stable than traditional feeding technology and the rejection rate is greatly reduced.
4. The machine with humanized design, automatic counting system and collection,
it can save more human resource than traditional machine.
5. The machine can equipped with packing machine(paper plates packaging film) and labeling machine(the label after packaging).
It's suitable for production line.
Detailed Photos

1. R&D with very experienced engineers and designer, we never stop, keep improving and perfecting on machines.
2. Feeding system: Flat feeding with auto delivery function which can lead the paper to the mold, if paper jam, the machine will stop.
3.Custom order -Fast Hydraulics, 150mm working distance, air 0.2~0.8mpa, 5 tons pressure can meet with round and square paper plate forming, save air but need more electricity. 4. Our machine updates the body frame, as we use two 2cm thickness iron plates and by CNC accurately lathing to each relative screw holes, after baking varnish surface, then fastened it with optical axis, it is so different like the normal welding frame, which is more heavier for our machine and of course more steady and can serve for quite a long time.
5. We can supply free training service or after sales service as option. 6. Electrical parts, PLC, Convertor, photoelectrical sensor, etc.

Main Technology Parameter

Raw Material	100-500g/m² base paper ,cardboard ,ivory board ,aluminum foil paper or other
Production Speed	90-120pcs/min (double workpalces)
Power Source	380V 50Hz
Total Power	14Kw (include hydraulic)
Air Compression: 0.8 mpa, air output 0.3-0.6 cbm/min
Blank Paper Size	Max paper unfold diameter size 300mm
Plate Specification	5inch-10inch, max paper unfold size: 300mm
Overall Dimension	2600*1100*1800mm
Packing Diemension	2200*1700*1880mm
Dimensions	3600*1350*1500mm
Total Weight	1300kg

Product Sample
Mould
Packing & Delivery
Our Team
Certification
FAQ
1. Q: How To Order ?
A: Step 1, please tell us what model and quantity you need.
Step 2, then we will make a PI for you to confirm the order details.
Step 3, when we confirmed everything, such as sample sizes, drawings, moulds,etc.
Then you can arrange the payment, 30% T/T for ordering, 70% T/T before machine delivery.
Step 4, finally we deliver the machines within the delivery time.
2. Q: When will make delivery ?
A: Delivery Time
-Sample Order: 1-3 days after receipt of the delivery charge.
-Stock Order: 3-7days after receipt of the full payment.
-OEM Order: 15-25days after receipt of the deposit.
3. Q: What product do you provide?
-Paper lunch box making machine
-Paper stick making machine for cotton swab, lollipop
-Paper drinking straw making machine
-Paper plate making machine
-Roll to sheet die cutting machine
4. Q:Are you trading company or factory?
We are directly factory supplier, direct lowest price, and we have own technical team support after sale service.
5. After-sales Service support include:
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new partsfor free to replace in the next order,
as an experienced manufacturer, you can restassured of the quality and after-sales service.
6. Payment
30% deposit T/T for ordering , 70% balance T/T or irrevocable L/C at sight before shipment.
7. Transportation
Transported by Air freight. sea freight.
24 hours always online service is waiting for your inquiry.
