Hyperspectral Imaging Imager Microscope Ath5010

Product Description

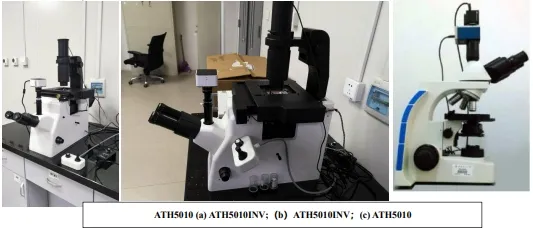

Hyperspectral Imaging Microscope ATH6010
Description
ATH5010 is self-developed hyperspectral imagingmicroscope with compact size, HD, high quality,itcomsists of microscope, hyperspectral imager anddataprocessing work station. ATH5010 employs 1920X1080 pixels high performanceCCD imaging component, clear images, lownoise, theintegrated exclusive high conpression images algorithmcan improve database storage. Hyperspectral imaging technology provides spectralimages with fast, accurate,and high spectral andspatialresolution, and universality. It can widely appliedtomedicine, pathology, pharmaceutical, life science.etc. Aswell as medical institute, research science, medicalcollege, pharmaceutical companies laboratoryresearchequipment.
Features
Spectral Range: 400-1000nm
Spectral Resolution: <2.6nm or 4nm(ATP9020)
Wide FOV:23.5°@f=35mm(Relate to Objective)
IFOV: 0.9mrad@f=35mm(Relate to Objective)
User-friendly structure and outlook design
Super stability of integrated design
High quality 3WLED illumination can ensure stable and long life span
HD CCD camera provides HD specimen images
Spectral analysis and images scan, which improve time efficiency and avoid multiple data processing and loss.
True colorful pictures processing and analysis
Application Medical Institute, Cancer Tissue Sorting, Blood Cell Classification; Scientific Research Institute Medical Universities Pharmaceutical company: herbal materials identification Food safety: meat source identification; Microplastics identification Mineral materials screening Diamond colors identification

Spectral Range	400-1000nm
Spectral Resolution	<3nm
Spatial Channels	480(Max. 1920)
Spectral Channels	270 (Max. 1280)
NA	F/2.4
Bit Depth	12bit
Spatial Resolution	<2mrad
Images Size	7.8mm×14.2mm
FOV Overlap	Shift < 10% of FOV diameter of microscope
Operating Temp.	+10ºC~+40ºC
Working humidity	30%~75%
Voltage	Rated voltage<500V,voltage shift<±10%
EMC Test	Pass
Cleanliness	No obvious pitting, scratches, bubbles and other defects that obviously affect the observation in the field of view, and no obvious broken edges,oil stains and attachments of optical parts
Stability	Stable and firm stand support, movement, moving parts
Air Pressure	700hPa~1060hPa
Optical System Infinite chromatic aberration-corrected optical system/common-corrected optical system Observer head Siedentopf type binocular or trinocular head, 30°inclined,Interpupillary: 50-75mm Eyepieces PL10X/22mm High eye-point wide field plan eyepiece, PL20X/12mm High eye-point wide field plan eyepiece total 2 pairs, Diopter adjustment ±5 , tube:Φ30mm Magnification 40~2000 times(total 8 classes) Objectives Infinite wide field plan achromatic objective 4X,10X,40X,100X Nosepiece Inner 4 or 5 holes Condenser abbe condenser ( optional plug-in phase contrast conversion, dark field condenser interface, polarized port) Stages 220×148mm double-layer stage X -axis steel wire mechanical moving stage, moving range: 76X50mm,precision 0.1mm, two-slice is available Condenser Mechanical Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm Illumination System 3WLED brightness continuously adjustable Köhler Illumination system Digital camera imaging system 5-mega Camer, HD digital USB port, clear and smooth images, Connectable to computer to imaging and taking pictures, videos, measurement, edit, save and print.

What is Hyperspectral Imaging Camera?
Hyperspectral imaging Camera, or imaging spectroscopy, combines the functions of imaging camera and spectroscopy. A hyperspectral camera acquires the spectrum for each pixel in an image of the scenes.

What does Hyperspectral Imaging Camera used for?
Hyperspectral Imaging Camera are used for applications in astronomy, agriculture, molecular biology, biomedical imaging, geosciences, physics, environment,and monitoring. Hyperspectral imaging camera takes pictures of objects spectrum with unique 'fingerprints', it enable identification of the materials. Like spectral fingerprint of oil helps geologists locate new oil fields.

What does Hyperspectral Imaging Camera tell you?
The hyperspectral imaging provides much more color information in details than a normal camera,which leads to differentiate from objects in the scene. Hyperspectral imaging is used to find objects, identify materials, or detect processes.

How much does Hyperspectral Imaging Camera cost?
OPTOSKY manufactures hyperspectral imaging camera 400-1000nm prices range USD45,000~49,800.

How to choose a Hyperspectral Imaging Camera?
Compare FOV,spatial dimensions, weight,optical performance,size, and cost etc.

Where to buy Hyperspectral Imaging Camera?
Buy from local distributor of OPTOSKY,online shopping or inquire us.

Why Chosse Optosky Hyperspectral Imaging Camera?
1.Optosky F2.4, FOV is larger than that of competitors
2.Spatial dimension 14mm
3.Lightweight 1500 g, 950g, 650g
4.High optical performance
5.Compact size:300x70 x70mm;300x60x60mm;270x50x50mm
6.Low cost
