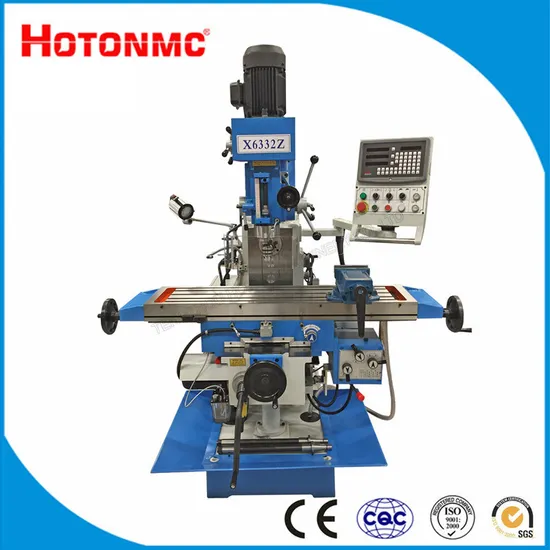

X6332Z High precision Vertical and Horizontal Drilling Milling Machine
| US$6,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6332Z
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
long travel
800mm
Taper
MT4
Vertical Travel
300mm
Cross Travel
300mm
Table Size
1250X320mm
Transport Package
Plywood Case
Specification
2150KGS
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
20 PCS/Month
Product Description
Performence Features:
1. Flexible, multi-function of milling, drilling and tapping .
2. Easy to operate, convenient maintenance
3. High speed milling head , high precision, swivel 90°, flexible processing.
4.Cast iron after artificial aging treatment,high precision,long service life
5.Belt drive, low-noise, Fast speed
6.Hardening treatment.
7.Equipped with manual lubricating device, the lubrication on the lead screw and guideway
8.Milling head from taiwan, 5HP-ISO40-STEP pulley
9.X, Y-axis auto-feeding, Z-AXIS with lifting motor table.
| Standard Accessories | Optional accessories |
| Drill chuck | 3 axis DRO(SINO) |
| Mill chuck | Universal dividing head(F11160A) |
| Spindle arbors | Rotary working table(TSL200) |
| Working light | 58 clamping sets |
| Coolant system | Collet chuck set |
| Chip tray | |
| Some tools | |
| Table Swivel +/- 45° | |
| All 3 Axes With Automatic & Rapid Feeds | |
| Vertical Feed Gear Swivels +/- 45° | |
| Adjustable Ground Dove Tails Guide Ways on The Axis, Wide Square Guide Ways on Y & Z Axis |
| SPECIFICATION//CODE NO. | UNIT | X6332Z |
| TABLE SIZE | MM | 1370× 320 |
| SPINDLE SPEED RANGE | R/MIN | 90-2000(V), 60-1350(H) |
| TABLE TRAVEL | MM | 800/300/400 |
| SPINDLE TAPER | MM | ISO40 |
| DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE | MM | 0-400(H) |
| DISTANCE FROM SPINDLE AXIS TO COLUMN SURFACE | MM | 200-600(V) |
| SPINDLE TRAVEL | MM | 127(V) |
| MAIN MOTOR | KW | 3.7(V)2.2(H) |
| PACKING DIMENSION(L×W×H) | MM | 1720× 1520× 2225 |
| GROSS/NET WEIGHT | KG | 1650/1500 |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
