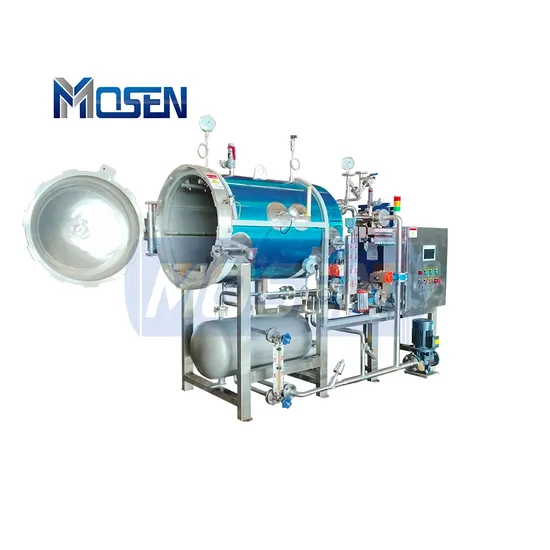

Automatic Pilot Water Spray Retort Food Autoclave Retort Sterilizer

Product Description

Product Description
Automatic Pilot Water Spray Retort Food Autoclave Retort Sterilizer

Features of small sterilization retort
1. High-temperature short-term sterilization. The process water temperature is high, which shortens the heating time and improves work efficiency.
2. Save energy. The process water used in the sterilization process of the small sterilization pot can be recycled, saving energy, time and manpower, and reducing production costs.
3. Stable temperature control. The small sterilizing pot adopts a newly designed liquid flow switching device, which continuously switches the flow of the process water, up and down, left and right, eliminating dead spots during the sterilization process, and ensuring product quality.
4. The entire sterilization process is fully automatically controlled by PLC. The heat distribution temperature in the kettle is controlled at ±0.5°C. It can be heated in multiple stages to save energy. It is equipped with an F value measurement function and can store 100 sterilization formulas.
5. For flexible packaging products, especially large packaging, the heat penetration speed is fast and the sterilization effect is good.
6. The entire sterilization process is automatically completed in strict accordance with the preset process, eliminating the possibility of misoperation.
7. The sterilizing retort uses aluminum silicate wool and polyurethane foam for insulation, which reduces the heat loss of the sterilizing pot, saves steam energy, and meets low carbon and low emission requirements.
8. The sterilizing retort is equipped with a triple safety interlocking device, which can effectively prevent workers from misoperation and avoid accidents.
9. Use dual safety valves and dual pressure sensing controls to eliminate potential safety hazards.
Our Advantages
The counter-pressure sterilization method uniquely designed by our company can better ensure the shape of the product and will not deform the product due to sudden heating and sudden cooling during the sterilization process.
Product Application
Sterilizers are widely used in food, juice, pharmaceutical, chemical, beverage and other industries as a necessary equipment for high-temperature heating sterilization and extending the shelf life of food and beverages.
1. Fish and seafood, such as hairtail, sardines, shrimp paste, etc.
2. Babao porridge, sesame paste, lotus seed porridge and other viscous products;
3. Soft bag packaging: aluminum foil bags, transparent bags, vacuum bags, high-temperature cooking bags, etc.;
4. Canned products: tinplate cans, aluminum cans (canned beverages such as almond dew, walnut dew, health tea drinks, etc.);
5. High temperature sterilization of meat products, ham, barbecue, pickled eggs and other halogen products;
6. Hot pot seasoning, chili sauce, tomato sauce, jam, etc.;
7. Milk, peanut milk, almond milk, dew and other beverage products;
8. Vegetables, corn, fruits, salads, soybeans, seeds and other agricultural products.
Product Parameters

Model	Effective diameter (MM)	Effective Length (MM)	Capacity (m³)	Outside Measurement (MM)			Design Temperature	Design Pressure	Test Pressure
				L	W	H
DN0710	700	1000	0.38	2500	1700	2500	147ºC	3.5bar	4.4bar
DN0712	700	1200	0.46	2700	1700	2500	147ºC	3.5bar	4.4bar
DN0815	800	1500	0.75	3000	1800	2700	147ºC	3.5bar	4.4bar
DN0918	900	1800	1.1	3300	1900	2800	147ºC	3.5bar	4.4bar
DN1020	1000	2000	1.80	3400	2200	3000	147ºC	3.5bar	4.4bar

♦ We are a manufacturer and can design a size model that suits you based on the packaging form and output of your products. If you have any questions, please feel free to contact us at any time. Production Process

Certifications
Customer Visit
Electrically heated small sterilizing retort is used for soft bag packaging and aluminum foil bag packaging products
Top Quality Small Lab Retort Autoclave Food Sterilizer For Canning Food/Meat/Beverage

FAQ

Q:Are you a manufacturer or a foreign trade company?
A:We are a manufacturer, we have our own factory, and we have a pressure vessel production license issued by the Chinese government, which can guarantee the quality of every piece of equipment.
Q:How long is your production time?
A:Normally, it takes 40-50 working days.
Q:What types of sterilizers retort have you produced?
A:We have produced water immersion sterilization retort, spray sterilization retort, rotating sterilization retort, multi-pot parallel sterilization retort and other customized sterilization retort.
Q:Where is your company located in China?
A:Our company address is # 6577, Xinghua East Road, Zhucheng, Weifang, Shandong, China
Q:Will you do the installation on site?
A:Yes, after you prepare the water source, power supply and air source, our engineers will go to the site to guide you on the installation.
