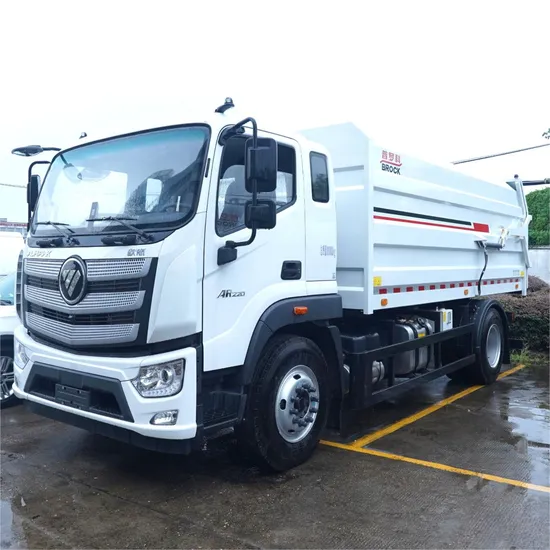

Foton 18000kg Heavy Duty Van Garbage Truck Compactor 6000-10000L Diesel Compressed Docking Vehicle Delivery Waste Truck Special Transfer Rubbish Dump Truck 5184

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Product Description Product Overview:
Foton 18000kg Large Van Garbage Truck Diesel Compressed Docking Garbage Truck Transfer Vehicle 5184
BJ5184ZXLE6-P1 van garbage truck is developed with special working devices such as garbage bin, hydraulic tail door, subframe, hydraulic system and electrical system.
Match the international famous brand diesel engine, emissions reach the national VI standard. The vehicle has the advantages of beautiful appearance, comfortable driving, convenient operation, flexibility and high reliability.
It can be matched with vertical compression compressors and combined into medium-sized or large-scale compressed waste transfer station complete sets of equipment, which is widely used in the closed transfer of municipal solid waste.
Function Overview
The van garbage truck is used together with the vertical garbage transfer station.
Adopt fully closed compartment, hydraulic cylinder self-locking structure sealed back door. Sealed transportation of garbage eliminates the phenomenon of garbage and sewage leaking along the way, and avoids secondary pollution during transportation.
Using tipping discharge method, simple structure, fast and clean discharge.
The box lifting adopts sequence control, and the operator can control the opening and closing of the rear door and the tilting of the car in the cab, which reduces the labor intensity and improves the working environment.
Using famous hydraulic components, easy to operate, reliable work.
Scope of application
The truck is mainly used for collecting and transferring kitchen waste produced by catering establishments, hotels, unit canteens and so on.

Product Parameters

Item		Unit	Parameters
Product Trademark			FOTOM BROCK
Bulletin Model			BJ5184ZXLE6-P1
GVW			18T
Vehicle Parameters	Maximum Gross Mass	kg	18000
	Vehicle Weight	kg	78,50 7,980
	Rated load mass	kg	10020,9955;9890,9825
	Overall dimensions (L×W×H)	mm	7340,7790×2480×3070,3090
	Approach/Departure Angle	°	18/13
	Wheelbase	mm	4500
	Inside Dimension of Dumpster	mm	4770,5300×2180,2200×1630,1650
	Effective volume of dumpster	m³	17/19
	Number of lifting cylinders and cylinder bore		2x2TG120/75-1300
	Cylinder action mode		double acting
	Hydraulic oil tank	L	54
Up-loading configuration and parameters	Rear door structure		Fork arm type
	Rear door sealing method		Sealing strip compression sealing
	Trash dumping method		Self-dumping rear tipping discharge (center double top)
	Number and stroke of locking cylinders		HSG50/32-532/752
	Rear door opening and unloading method		Hydraulic front tipping
	Maximum speed	km	100
Performance Parameters	Maximum climbing capacity	/h
		%	/
Chassis parameters	Chassis model, manufacturer		BJ1186VKPHK-1K-Beiqi Foton
	Number of loaders		Standard 2-person, optional 3-person
	Engine/Motor	Manufacturer	Guangxi Yuchai Machinery Co.
		Model	YCS06220-60
		Power/Speed (kW/r/min)	162/2300

Detailed Photos

The main advantages of the product
Through technical parameter analysis and field measurement and market research, our Proco van garbage trucks have the following advantages:
1. Chassis: using Yuchai power diesel engine, the engine environmental protection, low fuel consumption, low noise.
2. Dustbin: dustbin tipping unloading, unloading Angle up to 47º. The total volume of the garbage can is 17/19m³, the whole electrophoresis, the box is painted with high temperature, and the corrosion resistance is good.
FAQ
1. Q: How about the quality of your trucks? A: Huanagu Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price? A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
