Advance Car Rivers Camera Screen 8 5

Product Description

Overview Essential details Type: TFT, TFT
Display Size: 5inch
Supplier Type: lcm
Place of Origin: Guangdong, China
Brand Name: Kingtech
resolution: 800x480
viewing direction: 12 O'clock
Can be customized: OEM and ODM welcome
Storage Temperature: -30ºC~80ºC
Brightness: 500nits
outline dimension: 120.7(W)*75.8(H)*2.9(T)
AA: 108(W)*64.80(H)
driver IC: ILI6122+ILI5960
Interface: 24-bit Parallel RGB Interface Supply Ability Supply Ability
8000000 Piece/Pieces per Month Packaging & delivery Packaging Details
Carton
Port
shenzhen / hongkong
Picture Example:
Lead time:

Quantity(pieces)	1 - 10	11 - 1000	1001 - 3000	>3000
Lead time (days)	7	21	23	To be negotiated

For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness. MIPI, LVDS, RGB interface; USB and I2C capacitive touch, HDMI board For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness. Product Description

Module Display Main Parameters
Item	kingtech 10.1 inch ips1280x800 display
Model No.	PV10109LZR40G
Resolution	1280 x 800
Outline Dimension	229.80(W) x 149.00(H) x 5.95(T)
Active Area(mm)	216.96(W) x 135.60(H)
Interface	8-BIT LVDS Interface
Viewing Angle	All
LED life	50000h
Display Mode	Transmissive / Normally Black
Operating Temperature	-30ºC to +80ºC
Storage Temperature	-30ºC to +80ºC
Brightness	1000nits
Touch screen	I2C / USB capacitive touch screen

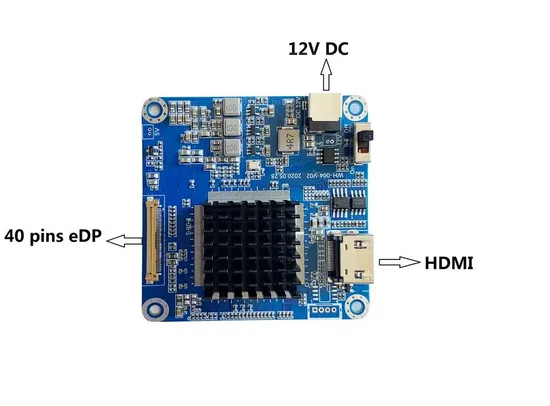

Board	HDMI board

Product Description

Item	500nit/1000 nit 5 inch tft lcd display
Model No	PV0502LZR40D
Resolution	800*480
Outline Dimension	120.7*75.8*2.9
Active Area(mm)	108*64.80
Interface	24-bit Parallel RGB
Viewing Angle	12 o'clock
Driving IC	ILI6122+ILI5960
Display Mode	Transmission / Normally White
Operating Temperature	-20ºC~70ºC
Storage Temperature	-30ºC~80ºC
Brightness	500nits / 1000nits
Touch screen	Resistive / capacitive touch screen
Board	HDMI board
