X5032 X5040 X6132 Conventional Universal Turret/Table/ Mini CNC Vertical/Horizontal Knee Type Milling Machine for Manual Metal Drilling Industrial Machine Tools

Product Description

Product Description
Factory vertical milling machine X5040 X5032 Milling machine Universal Milling Machine Tools X6140 Vertical Knee Type Conventional Manual Mills
Our X series heavy bed-type universal milling machine with cross table combines high unladen weight, wide guides and high drive power for superior cutting performance. The universal milling head can be swiveled on two planes and positioned at almost any spatial angle. The feed on the Y- and X-axes is infinitely variable and all axes can be traversed in rapid mode. The large clamping table offers plenty of space for workpieces and clamping devices. Together with the extensive equipment, it is ideal for industrial and machine manufacturing.
1.More large work area(400*2000mm)
2.Infinitely variable feed
3.It's horizontal milling with outer arbor support
4.The spindle adopts energy-consuming braking, which has large starting torque and stops quickly and reliably.
5.There are three types of worktable X/Y/Z directions: manual feed, motorized feed and motorized fast forward.
6. The guide rails in the X, Y, and Z directions are processed by ultrasonic quenching, precision grinding and scraping.

Product Parameters

Specifications	Units	X5032	X5040	X5045
Table size	mm	1320x320	1700x400	2000x450
T-type slot numbers / width /space	mm	3-18-70	3-18-90	18
Max. load of table	kg	500	800	800
Longitudinal travel (manual/auto)	mm	700/680	900/880	1800
Transverse travel(manual/auto)	mm	255/240	315/300	400
Vertical travel (manual/auto)	mm	370/350	385/365	460
Cutting feed speed	mm/min	X.:23.5-1180.Y:15-786.Z:8-394	X.Y:23.5-1180. Z:8-394	X.Y:10-1000 Z:10-450
Rapid feed speed	mm/min	X:2300.Y:1533.Z:770	X.Y:2300..Z:770	1800
Spindle travel	mm	70	85	85
Distance between spindle nose and table surface	mm	60-430	130-515	30-600
Max. swivel angle of table		±45°	±45°	±45°
Spindle speed step	(steps)	18	18	18
Spindle speed range	rpm	30-1500	30-1500	30-1500
Spindle motor power	KW	7.5	11	11
Overall dimensions	mm	2294x1770x1960	2560x2130x2298	2560x2160x2400
Machine weight	Kg	2800	4250	5100

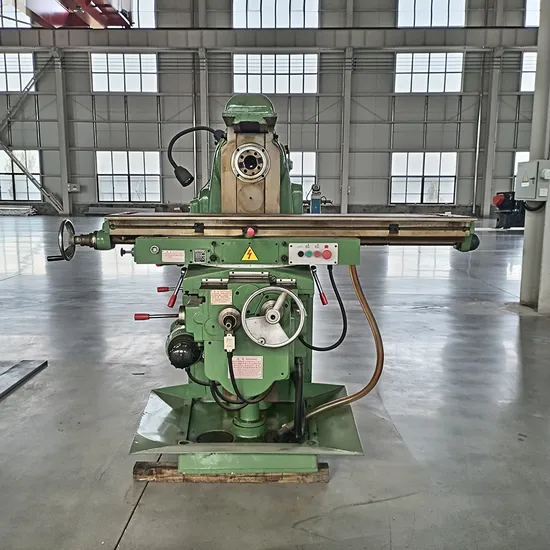

Detailed Photos
Machine features
1) This machine tool mainly comprises a bed, a lifting platform, a worktable, a main transmission, a main speed change, a lubrication system, a cooling system and other parts.
2) The machine tool has sufficient power and a wide speed range, which can give full play to the efficiency of the tool and can use carbide tools for high-speed cutting.
3) The machine tool worktable can realize manual and motorized feeding in the vertical and horizontal directions respectively. A feed box powers the vertical and horizontal motorized feeding, and there are 8 feed speeds and 1 fast feed speed for feeding. The main transmission adopts gear transmission, which has high efficiency, large torque transmission, large speed range and wide selection.
Our Advantages
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co.Ltd Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure you can use the machine better.
FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications. We can choose the best model for you, or you can choose the exact model. You can also send us the product drawing, and we will select the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set
