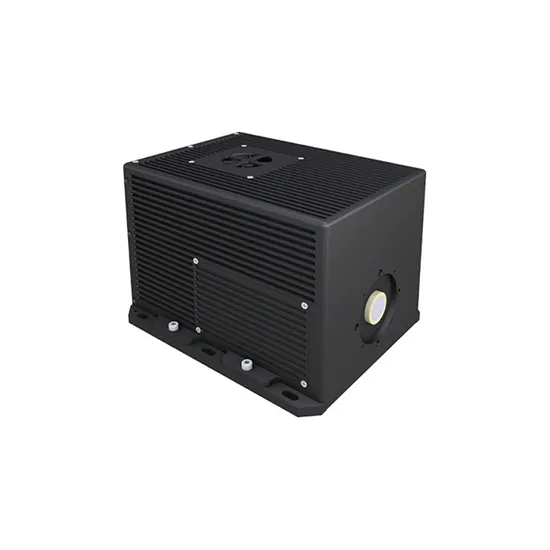

640X512 15um Mct Stirling Cooling Lwir Cooled Thermal Imager Detector Module
Basic Info.
Model NO.
CQ-LTM6C15L
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
520tvl
Kind
Autofocus Lens
Certification
CE, FCC
Feature
Waterproof / Weatherproof, High Definition, Mini Size
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Resolution
640X512
Frequency Range
7.7um-9.3um
Pixel Size
15um
Cooling Mode
Sterling
Video Output
PAL
Communication Interface
RJ45
Power Consumption
25W
Transport Package
Carton
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
100 PCS / Month
Product Description
The LWIR cooled thermal imager adopts high sensitivity MCT focal plane detector, and Stirling Cooling, with a spectral response range of 7.7μm-9.3μm.Adaptive non-uniformity correction technology, image noise filtering, enhancement, automatic dimming and other intelligent image processing methods are used to ensure good image quality. With high sensitivity, small size, and modular design, the product is easy for integration, and can work around the clock.
Characterized by a full range of functions, multiple interfaces, high reliability, and strong expandability, it can be widely used in industrial monitoring, fire warning, panorama search, characteristics measurement, thermal image viewing, scientific research and IR recognition etc.
Features:· Adaptive non-uniformity correction technique;· 640×512 products, with frame frequency up to 200Hz· High linearity, stability and repeatability, suitable for the measurement of radiation characteristics;· Multiple video output: AL / NTSC / CameraLink / GigE / SDI / Fiber Optics;· Customizable broad spectrum (7.7μm~11.1μm) and high frame frequency.
| Model | CQ-LTM6C15L |
| Resolution | 640x512 |
| Wavelength range | 7.7μm-9.3μm |
| Pixel size | 15μm |
| Detector material | HgCdTe |
| Cooling mode | Sterling |
| Operating temperature | -40ºC~+60ºC |
| Input voltage | 20V ~ 32V/3A |
| Power consumption | ≤25W@20ºC |
| Video output | PAL / NTSC / CameraLink / GigE / SDI / Fiber optics |
| Communication interface | RJ45 standard network port / RS422 serial port |
| Sync Interface | RS422 / LVDS / LVTTL |
