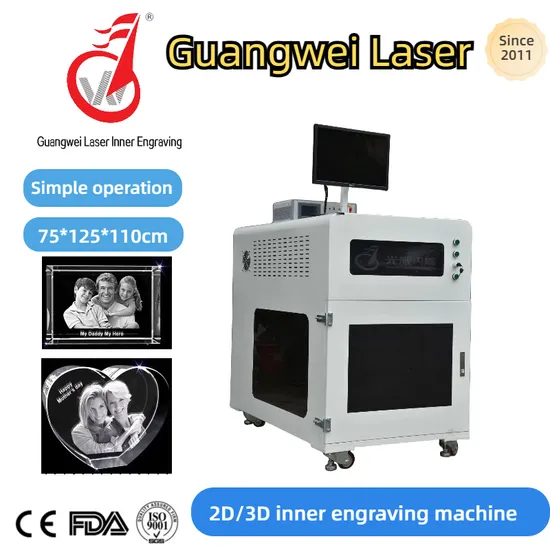

2D/3D Glass/Crystal Inner Engraving Machine

Product Description

Product Description
GW - A02 laser engraving machine is a model of the highest cost performance, is mainly used in studios, advertising gifts, tourist attractions and inside carving processing, etc., so the market is also known as wedding studio dedicated laser subsurface engraving machine, advertising gift engraving machine, 3 d portrait inside carving machine, multi-function inside carving machine, etc.
The device has two advantages and eight features :
Advantages one:
The device also has a double function of engraving and marking, operations of the two sets of software, operation simplely.
Advantage two:
Carving material is not limited by the specifications of the device itself, leaking outside engraving of the equipment, product size can be carved carving format several times.
Eight features :
1, do not pick the material, a multi-purpose machine. In transparent materials such as Crystal, glass, acrylic, zircon carve arbitrary text and logo through our technology, the device can also be opaque materials such as metals, non-metallic surface to base Ray Eagle process, achieve the purpose of a multi-purpose machine.
2, both a 2D and 3D features. Graphic photos, children's hands and feet can be done printing, trophies, medals, 3D portrait and various 3D model.
3, the z axis and XY-axis design. Z axis pressure of assessment, to carve even larger workpieces.
4, easy to operate, flexible and convenient. Fool that you developed software for a computer novice, one hour can make their own independent operations; both mass production and personalization process. Mass production, one person can operate several devices, saving manpower.
5, engraving speed, some fine, evenly. 368 specification Crystal like, two or three minutes for fast high quality completion.
6, no dust and no pollution. Because the laser is in the Crystal, glass, acrylic and carved in the translucent plastic film processing, without any damage on the surface, so no any pollution distribution;
7, wear-resistant, cannot be altered. Carving pattern in the material of the equipment, material appearance without any cracks or damage, so cannot be used with acid and alkali, solvents, heat, friction and removal, complete elimination of imposture.
8, energy saving. Total power about once per hour, 220 volt 50HZ power. Application areas
1. electrical panels, electrical and phone industry mobile phone keys, housings, lenses, film, IMD/IML external, internal marking of products;and so on.
2. lighting industry, jewelry industry , such as internal carved LOGO, name, text, logos and graphics, etc.
3. the distillery, cosmetics factory, glass factory product anti-counterfeiting goods, security codes, region codes, two-dimensional codes, date of production, logistics code, and code, and so on.
4. the photo salon, tourist attractions, portraiture, trophies, medals and gifts industry production
5. other activities: identifies the porcelain industry; automotive headlights; eye glasses, spectacle; clock dial; within the advertising industry for ultra-thin and light materials engraving any characters and words.
Product Parameters

Parameter name	parameter value
Average output power:	About 3.0W
Laser length	532
Peak power	55.7KW
Speed of light quality	M2<1.5
laser frequency	5000HZ
Q adjusting	acousto-optic
Pulse width	7-10ns
Max range	300mm*400mm*100mm
Maximum engraving speed	300000 points/minutes
Laser head:	single
Power requirements	220V ± 10%/50Hz
Laser cooling way	air cooling
Resolution:	500-1200DPI
Focal length	100mm
diameter of focus	0.03mm
Laser module life	20,000 hours
environment	No dust ,no vibration source
Applied materials	Crystal, glass, acrylic, sheet PC/PET, zircon and other light materials
Dimensions	760*960*940MM
Weight	About 140KG

Note: the above are standard parameter, if you have special need, you could customized your machine.
Detailed Photos

Company Profile

Certifications
FAQ
Q: How can I install and debug the machine? A:We will provide instructions and installation videos with the machine, and provide online guidance from English engineers to ensure that the machine can operate normally, and at the same time, let customers learn how to operate and maintain the machine. Q:Can I customize the machine according to my requirement? Or OEM? A:Guangwei is a research and development manufacturing company, we will provide suitable machines according to the specific needs of customers, and provide OEM services. Q:Can you arrange transportation for me? A:Of course, for foreign trade business, we provide EXW, FOB and CIF services. Customers with urgent needs can also choose air freight. Q:What is the warranty period of the machine? A:We provide a one-year warranty period. During the warranty period, free repairs or replacement of broken parts are provided. Free maintenance services and machine upgrade services are provided for life outside the warranty period. Q:What's the consumables of the machine? How much? A:The machine is very easy to maintenance. The service life of the laser head is approximately 20,000 hours. For other parts will not damage if no accident.
