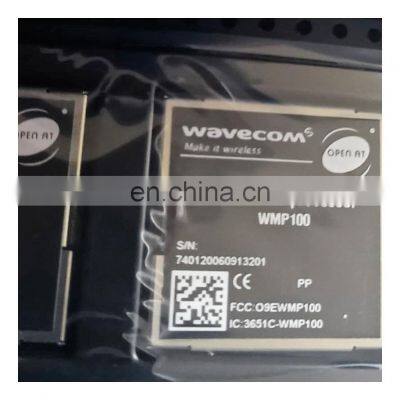

Wavecom/Sierra Wireless Microprocessor WMP100

Product Description

Product Description
DescriptionKey features:• Quad-band global GSM/GPRS/EDGE Rx connectivity on the 800, 900, 1800 and 1900 MHz frequency bands• Programmable ARM9 32-bit processor at 104MHz• Delivered with embedded, AT commands driven TCP/IP stack• Automated assembly• Form factor compatibility with entire WMP Series • Compact size, only 25 x 25 x 3mmKey benefits:• Full pinout and software compatibility with other WMP Series modules• Improved time to market• Reduced total system cost and size and performance• Fully automated, high volume production• Air Interface: EDGE Rx, GPRS, GSM• Frequency Bands: EDGE/GPRS/GSM 850/900/1800/1900 MHz• Approvals: R&TTE, CE, GCF, FCC, PTCRB, China RTE ，AT&T (GPRS) ATEX• Alarm Power: 16uA• Standby and Idle Power: 2.5mA• GSM GPRS Max Power: 400mA• CPU Processor Performance: ARM946/DSP• CPU Core Frequency Performance: 104MHz (26MHz)• CPU User MIPS Available Performance: 87MIPS• CPU IO Voltage Performance: 1.9V-2.8V• CPU Analog Audio Performance: 2x speaker out, 2x micro in• Codec: HR, FR, EFR, AMr• Quality: VDA2A• Echo Cancellation and Noise Reduction: Yes (high)• DTMF: Yes• UART: 2• USB: Device 2.0 (full speed, low speed)• SPI: 1• ADC: 3 (+ battery)• DAC: 1• RTC: Yes (external crystal)• Timers: Yes• Interrupts Pins: 2• Flash LED Output: 1• PWM Buzzer: 1• Keyboard Interface: 5x5 (multiplexed)• SIM Interface: 1.8V/3V• Antenna Diversity: No• Location Solution: XM0110 GPS Module and Location Plug-in• Embedded SIM: No• Control Options: AT commands - C language - Lua script• Operating Systems: Linux、Windows• Device Management: No• Drivers: Linux• Windows Device Dimensions: 25 x 25 x 3 mm• Operational Temperature: -40°C to +85°CWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
