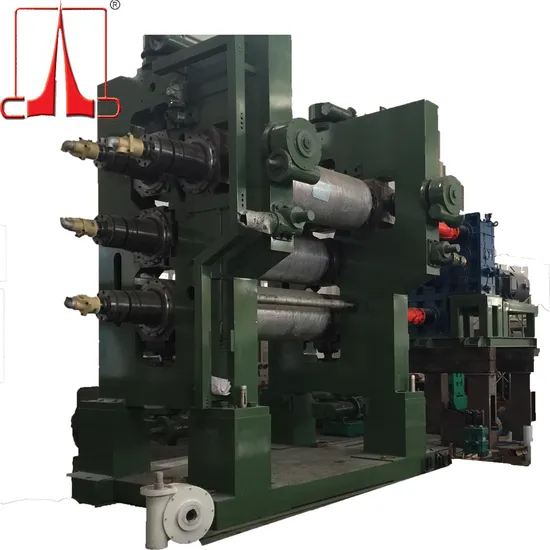

Four Roll Calender for Rubber and Plastic Sheet and Film 610X1730-2030

Product Description

Condition: New
Type: PVC SHEET AND FILM Calender
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: XY-4F 1830
Voltage: 380V
Power(W): 220000
Dimension(L*W*H): 6.9x2.6x3.8m
Weight: 33 T
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: 4 Roll Calender
Rubber Calender Color: Green / Blue / etc. (customize available)
PVC Film Calender Material: Stainless Steel / Carbon Steel / Casting Steel
Rubber Calender Roller Material: Chilled Alloyed Cast Iron
Motor for the Calender Machine: Frequency Converter Control
PVC Film Calender Bearing Style: Anti-friction Roller Bearing
Roller Nip Range: 0~6 mm
Roller Gap: Motorized
Packaging & DeliveryPackaging Details:Delivery Detail:

Wood Pallet & Film Wrap (4 Roll Calender)

60 Working Days Since Down Payment (4 Roll Calender)

Specifications
4 Roll Calender
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Product Width: 0.6mm~1.5m
4. Roller: Hollow or Drilled
Why Choose 4 Roll Calender Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu, Blue Star, Wacker, Momentive...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

Application of Lanhang Brand 4 Roll Calender
This machine mainly uses in the rubber (tires, belts,textile fiber rubberizing and so on),the plastic (thin film, sheet, thin sheet plate, wallpaper, floor and so on.) formation processing.

Main Parameters of Our 4 Roll Calender

Model	XY-4L 630 XY-4Γ 630 XY-4L 630	XY-4Γ 1120	XY-4Γ 1400	XY-4Γ1500	XY-4Γ 1730
Roller Diameter (mm)	Φ230	Φ360	Φ400	Φ450	Φ610
Working Length (mm)	630	1120	1400	1500	1730
Roller Linear Speed	1.5~15 m/min
Speed Ratio	1:1.2:1.2:1
Thickness of Product	0.2~6 mm
Product Width (mm)	100-500	500-920	1200	1250	1500
Thickness of Chilled Layer	10~25 mm
Hardness of Roller	68~72 HRC
Power Supply	AC 380V 50HZ 3P (customize available)
Motor Power (Kw)	15	55/18.3	75/25	100/33.3	160
Air Pressure	0.6~0.8 Mpa
Cooling Water Pressure	0.4 Mpa
Dimension (m)	4.0x1.6x2.2	4.4x1.8x2.3	5.0x1.9x2.6	6.9x2.6x3.8	7.2x2.8x4.0
Weight (t)	8	14	18	33	62

Packaging & Shipping
Wood Pallet & Film Wrap ( 4 Roll Calender )

Our Services
4 Roll Calender
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
