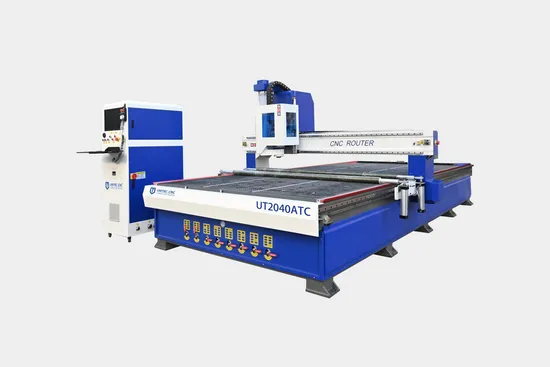

Woodworking Atc CNC Router Machine with Linear Tool Changer and Press Roller 2000*4000mm

Product Description

Detailed Photos

MAIN PARTS
Taiwan CSK Linear Guide	Japan Shimpo Reducer
Heavy Duty Frame	7.5KW Vacuum pump
Delta Servo Motor and Driver	HQD ATC spindle
Linear ATC with auto calibrator	Ncstudio Controller

Sample Presentation
Sample Presentation
Product Parameters

XYZ Travel Size	2100X4000X210mm
Max Working Size	2000X4000X180mm
Table Size	2100X4000mm
Transmission Type	XY rack/ Z ball screw
Guide Rail	Linear Guide
Table Type	vacuum
Vacuum Pump	7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power	9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer	Linear Tool Changer
Spindle Speed	24000rpm
Max Travel Speed	40000mm/min
Max Work Speed	25000mm/min
Motor	AC servo motor
Work Voltage	AC380V 50HZ
Controller System	Ncstudio or Syntec
Processing Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.01mm
File Format	G code or PLT
Overall Weight	2400KG
Overall Dimension	2650X4800X1900mm

Product Description
Applications and Materials:Furniture Industry: wood door,cabinet,classic furniture,panel furniture,etc Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc
Highlights Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running. Various of table styles makes convenient clamping materials and improves overall production efficiency Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality. Main configurations adopts imported accessories which will ensure the overall running performance Strict compliance with CE electrical standards for circuit design and production, and all Parts have safe and reliable protection device.
