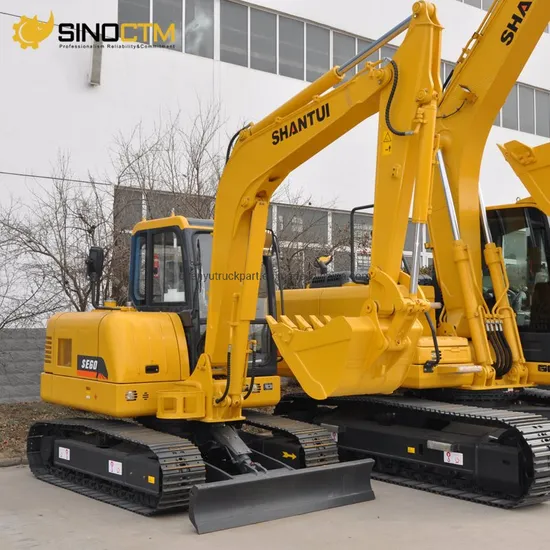

Chinese Famous Brand New Shantui Se60-9 Small Crawler Excavator 6ton Mini Backhoe Excavator

Product Description

Product Description
Cheap Mini Excavator Parts SE60 Prices Shantui 6 ton Crawler Excavator SE60
Original imported engine with Tier 2 emissions, conducive for energy saving and environmental protection; features radial seal air cleaner and air pre-cleaner, effectively extending engine service life.
Original imported hydraulics, with stable, reliable quality and high work efficiency. Strengthened working devices, new type cab and seat, air-con system, wide-field of vision, adding up to a safe and comfortable operating environment. Blade and breaking pipe are standard equipment for excavating, landfill, breaking and leveling. Multi-function GPS for remote monitoring and two-way data transmission, offers real time operating status.

Product Parameters
Parameter for Cheap SHANTUI SE60 Excavator

Engine
Engine model	V2607T
Rated power	36kw/2000rpm
Max.torque	206.9N·M/1100~1500rpm
Displacement	2.615 L
Emission standard	Tier 3
Operation Range
Operating weight	5960 kg
Max. digging height	5785 mm
Max. dumping height	4075 mm
Max. digging depth	3850 mm
Max. vertical digging depth	3000 mm
Max. digging reach	6200 mm
Min. swing radius	2395 mm
Dimensions
Overall length	5855 mm
Overall width	1880 mm
Overall height	2610 mm
Tail swing radius	1655 mm
Min. ground clearance	300 mm
Counterweight ground clearance	710 mm
Undercarriage/Working Device
Std. track shoe width	400 mm
Bucket capacity	0.22 m³
Carrier roller(per side)	1
Track roller(per side)	5
Track gauge	1480 mm
Boom length	3000 mm
Arm length	1600 mm
Performance
Travel speed	2.6/4 km/h
Gradeability	35°
Ground pressure	33 kPa
Tractive force	50 kN
Bucket digging force	48 kN
Arm digging force	32.3 kN
Service Refill Capacities
Fuel tank	95 L
Engine coolant	8.5 L
Engine oil	9 L
Hydraulic tank	74/110 L
Hydraulic System
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Pump flow	144L/min
Swing System
Swing speed	0-11r/min
The parameters are for reference only, please contact your sales representative for details.

ITEM	UNIT	SE60	SE70	SE80	SE130	SE210
Rated power	kW/rpm	35.5/2200	9/440	3/110	31/793	112/1950
Engine		4TNV94L-SFN	B3.3	B3.3	B3.9-C	B5.9-C
Type		4-cylinder inline	4 cylinders inline	4 cylinders inline	4 cylinders inline	6-cylinder inline
Bore×stroke	mm	94 x 110	95×115	95×115	102×120	102 x 120
Displacement	L	3.054	3.3	3.3	3.9	5.9
Cooling		Water-cooled	Water cooled	Water cooled	Water cooled	Water-cooled
Air filter		Dry air filter	Dry air filer	Dry air filer	Dry air filer	Dry air filter
Fuel tank	L	110	170	230	238	360
Throttle control		Manual-/	Electric control	Electric control	Electric control	Manual-/
		electronic-controlled				electronic-controlled
Operating weight	kg	5850	7100	7800	12800	20500
Bucket width	mm	769	804	820	980	1189
Bucket capacity	m3	0.22	0.28	0.32	0.55	0.9

Company Profile
Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products.
Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of "value leading and win-win service", introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers' praise, thus enhancing brand value of the enterprise. Six Free Services Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Hot sale products
Packaging & Shipping

Detailed Photos

FAQ
Q1. What's your MOQ?A1. One unit.Q2. What is your terms of payment?A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q3. What is your terms of shipment?A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containersQ4. What is your terms of delivery?A4. EXW, FOB, CFR, CIFQ5. How about your delivery time?A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q6. Do you test all your goods before delivery?A6. Yes, we have 100% test before delivery
