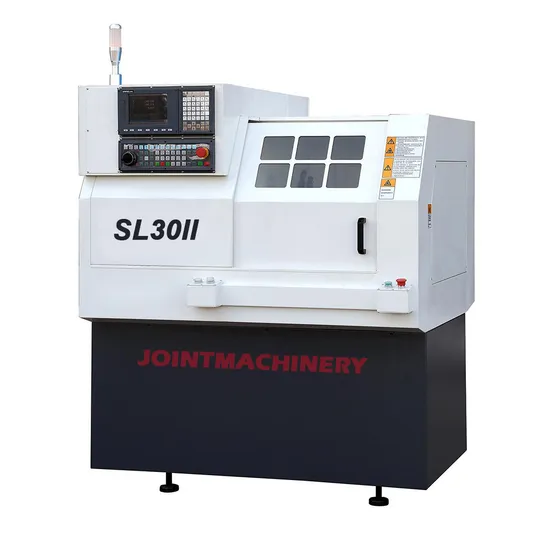

Original Factory High Torque Motor SL30II Small Metal Turning CNC Lathe Torno

Product Description

√ With a flat bed design, this machine is equipped with high-precision linear ways from Taiwan, enhancing both speed and stability for exceptional performance.
√ Featuring angular contact spindle bearings, this machine boasts reinforced rigidity and spindle precision, elevating its cutting prowess significantly.
√ Equipped with a mid-screw, the machine's stability is greatly bolstered during operation, ensuring smooth running.
√ Offering outstanding efficiency, precision, and cost-effectiveness, this machine is engineered for optimal performance.
Machine Type

Slant Bed Small CNC Lathe	Flat Bed Small CNC Lathe	High Speed Precision Small CNC Lathe

Machine Details Display

High Precision Spindle
The machine tool is designed with a built-in electric spindle and employs Japan's NSK ultra-high precision angular contact ball bearings. This setup guarantees exceptional spindle rigidity and long-term precision retention, with a spindle runout of ≤2μm.
Gang Type Tool
The compact gang type tool arrangement ensures precise tool changes and rapid tool change speed, significantly reducing processing time.
CNC System
Utilizing the reliable GSK CNC control system, this machine offers exceptional stability and precision. Options from Fanuc, Syntec, Siemens, Mitsubishi, and more are available for tailor-made solutions to meet customer needs.
Original Factory High Torque Motor SL30II Small Metal Turning CNC Lathe Torno

Model	SL30II
Max swing diameter over bed (mm)	Φ300
Swing diameter over X axis table	Φ130
Max processing bar diameter (mm)	Φ30
Spindle through hole diameter (mm)	Φ42
Max processing length (mm)	100
Spindle power (kw)	4.2
Spindle speed (r/min)	6000
Rapid feed speed (m/min)	24
X axis travel (mm)	320
Z axis travel (mm)	270
X axis torque (N.m)	3.5
Z axis torque (N.m)	3.5
Turning tool holder size (mm)	16
Spindle runout (mm)	≤0.002
Repeat positioning accuracy (mm)	≤0.002
Machine weight (kg)	1400
Dimension L*W*H (mm)	1390*1330*1720
