Yg6 H6 Tungsten Carbide Rods/Round Bars for Metal Working Tools, End Mills, Drill Bits, Milling Cutters

Product Description

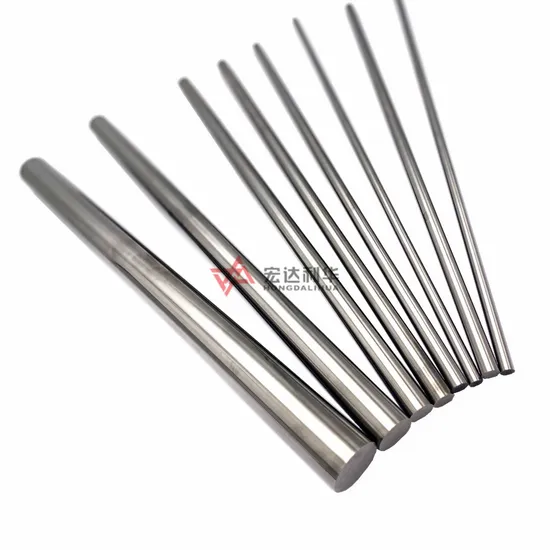

Tungsten Carbide Rods for End Mill for Cutting Machining
Applications:
It is suitable for the production of various types electrical machine & electronic progressive dies and punches. And widely used in ceramics, printing machine, plastic, rubber, leather industry and cutting machines, CNC machine, CNC, PCB micro drill bits, etc.
Details of Tungsten Solid Carbide Rods

Product name	Solid carbide Rod / Bar / Stick
OD tolerance	0.5um
Surface fineness	Ra0.025a
Sizes	Diamter:Φ0.5-Φ0.35mm,Length:100-330mm(diameter is Φ1.0-Φ6.0mm,lenght can up 700mm)
Type	Round(solid,hollow)
Grade	YL10.2, K20,K30 ,YL50,YU06A,YU06R,YF06,YH6F,YG11 etc.
Material	100% Tungsten Raw Materials
Physical performance	High Precision , hardness,strength, wear resistance .
Application	For production various types electrical machine & electronic progressive dies and punches.And ceramics, printing machine, plastic, rubber, leather industry and cutting machines.
Non-standard or Tolerance	Can be customized

1)Solid tungsten carbide rod/bar/stick

Diameter(D)	Tolerance	Standard length
Φ0.5~5.5	+0.30~+0.45	330 (+5.0/0)
Φ6.0~40.0	+0.20~+0.60	330(+5.0/0)

2)Hollow tungsten carbide rod/bar/stick

Outer Diameter	Tolerance of Outer Diameter	Diameter of Hole	Tolerance of Hole	Standard Length
Φ2.5~8.0	+0.2~+0.5	0.3~1.5	+/-0.15	330 (+5.0/0)
Φ10.0~30.0	+0.3~+0.8	2.0~5.0	+/-0.30	330 (+5.0/0)

Dimensions of Tungsten Carbide Rods

Dimensions of Tungsten Carbide Rods
Dimensions			Dimensions
Type	Tolerance of diameter(mm)	Tolerance of length(mm)	Type	Tolerance of diameter(mm)	Tolerance of length(mm)
Φ3.0×320	±0.5/0.6	0/+5.0	φ8.0×45	±0.5/0.6	0/+5.00
Φ3.5×320	±0.5/0.6	0/+5.0	φ8.0×50	±0.5/0.6	0/+5.0
Φ4.0×320	±0.5/0.6	0/+5.0	Φ8.0×320	±0.5/0.6	0/+5.0
φ4.5×320	±0.5/0.6	0/+5.0	φ8.6×320	±0.5/0.6	0/+5.0
φ4.0×150	±0.5/0.6	0/+5.0	φ8.0×150	±0.5/0.6	0/+5.0
φ5.0×36	±0.5/0.6	0/+5.0	Φ9.0×320	±0.5/0.6	0/+5.0
φ5.0×80	±0.5/0.6	0/+5.0	φ10.6×320	±0.5/0.6	0/+5.0
φ5.0×40	±0.5/0.6	0/+5.0	φ10.0×65	±0.5/0.6	0/+5.0
φ5.0×100	±0.5/0.6	0/+5.0	φ10.0×60	±0.5/0.6	0/+5.0
Φ5.0×320	±0.5/0.6	0/+5.0	φ10.0×55	±0.5/0.6	0/+5.0
Φ5.5×320	±0.5/0.6	0/+5.0	φ12.0×78	±0.5/0.6	0/+5.0
Φ6.0×100	±0.5/0.6	0/+5.0	φ12.0×150	±0.5/0.6	0/+5.0
Φ6.0×320	±0.5/0.6	0/+5.0	φ12.0×130	±0.5/0.6	0/+5.0
Φ6.6×320	±0.5/0.6	0/+5.0	φ12.6×320	±0.5/0.6	0/+5.0
Φ7.0×320	±0.5/0.6	0/+5.0	φ15.6×320	±0.5/0.6	0/+5.0
φ7.0×60	±0.5/0.6	0/+5.0	φ16.0×100	±0.5/0.6	0/+5.0
φ7.6×320	±0.5/0.6	0/+5.0	φ16.6×320	±0.5/0.6	0/+5.0
φ8.0×80	±0.5/0.6	0/+5.0	φ18.6×320	±0.5/0.6	0/+5.0
φ8.0×40	±0.5/0.6	0/+5.0	φ25.0×320	±0.5/0.6	0/+5.0

Tungsten Carbide Grade Information

Grade	Density g/cm3	Hardness HRA(hv)	T.R.S(M Pa)	Performances &applications recommended
YG6	14.9	89.5	2150	Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG8	14.6	89	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG11	14.4	87.5	2260	Medium grain, for wear parts and mining tools
YG15	14.1	86.5	2400	Medium grain, for mining tools, cold heading and punching dies
YS2T	14.45	92.5	2800	Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YL10.2	14.5	92.5	3400	Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YNi8	14.6	88.5	1710	This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.

Grade	ISO Grade	g/cm3 Density g/cm3	Hardness HRA>	T.R.S>N/mm² TRS >	Performances or recommended applications.
Conventional grades
YG3	K05	15.20-15.40	91.5	1400	Medium grain, for finishing machining of cast iron and non-ferrous metals.
YG3X	K05	15.20-15.40	92.0	1300	Fine grain, for finishing machining of cast iron and non-ferrous metals.
YG4C		15.05-15.25	90	1620	Coarse grain, for percussion drill bits and mining inserts.
YG6	K20	14.85-15.05	90.5	1860	Medium grain, for rough machining of non-ferrous metals.
YG6A	K10	14.85-15.05	92.0	1600	Fine grain, for drawing dies and woodworking tools.
YG6X	K10	14.85-15.0	91.7	1800	Fine grain, for cutting of non-ferrous metals.
YL10.1	K12-K25 M10-M30	14.9	91.5	1900	with good wear-resistance and good impact- resistance,Suitable for general drill tool wear parts.
YG8	K30	14.60-14.85	89.7	2060	Medium grain, for drawing dies.
YG8A	K30	14.6-14.85	90.0	2000	Medium grain, for the drawing dies and wood-working.
YG8X	K30	14.60-14.85	90.5	2000	Fine grain, high hardness and oxidation resistance at high temperatures and good impact toughness.
YG8C		14.55-14.75	88.0	2160	Coarse grain, for button drill bits and the mining inserts.
YG10	K40	14.25-14.55	88.0	2160	Medium grain, for machining gray cast iron with a low hardness.
YG11	K40	14.30-14.50	87.5	2260	Medium grain, for wear parts and mining tools.
YG11C		14.20-14.40	87	2260	Coarse grain, for mining inserts.
YGL10.2	M25-M40 K25-K35	14.5	91.5	2200	It is suitable for machining common steel,cast iron,stainless steel,nickel based alloys and titanium alloys,etc.It is recommended for making conventional tools,such as twist drill,end mills,screw taps,gun drill,ect.
YG15		13.95-14.15	86.5	2400	Medium grain, for mining tools, cold heading and punching dies.
YG20		13.45-13.65	84.0	2480	Medium grain, for non-standard dies and moulds, cold heading and punching dies.
YG20C		13.40-13.60	82.5	2480	Coarse grain, for die and moulds making screws.
YG22		13.15-13.55	83.0	2480	Medium grain, for non-standard dies and moulds, cold heading and punching dies.
High-performance grade
YD40		13.10-13.55	82.5	2480	High impact resistance, for cold heading and punching dies and hot heading and punching dies.
YD45		13.25-13.65	83.0	2480	High impact resistance, a special grade for hot heading dies.
YD05		14.90-15.20	93		Used for glass cutting
YD15		14.80-15.10	91	1900	Used in the manufacture of heavy duty cutting tool for castings and forgings and all kinds of steel skin coarse car or get a good effect, is widely applied in cutting blade.
YD201	K05	14.65-14.95	93.0	1760	Ultra-fine grain, for finishing machining of non-ferrous metals and for wood-working tools.
YC45	P40,P45	12.60-12.90	90	2026	Used in the manufacture of heavy duty cutting tool for castings and forgings and all kinds of steel skin epidermislathe or have a good effect.
YS series grades
YS2T	K30	14.40-14.60	91.5	2200	It is belong with ultrafine grain alloy , suitable for low-speed roughturning, milling, heat-resistant alloy and titanium alloy for the cutters and tap, saw blade milling cutter is best .
YS4		13.40-14.40	91.5	2260	Suitable for iron-based, nickel-based high-temperature alloy, rough machining of high strength steel, is also suitable for cold hard cast iron, heat-resistant stainless steel, high manganese steel, rough machining of hardened steel.
YS8	M05,K10	13.9	92.5	1720	Suitable for high, stainless steel, high manganese steel and high temperature alloy, silicon steel sheet, and cutting all kinds of coating materials, also suitable for high hardness cast iron and glass and so on work pieces of rough machining, finish machining.
YS10	M05,K10	14.30-14.50	91.5	2650	Suitable for high nickel iron, ball mill infinite chilled cast iron and white iron rough and finish machining, also used in rough machining and finish machining of cast iron.
YS25	P20,P40	12.80-13.20	91.0	2000	Suitable for carbon steel, cast steel, high manganese steel, high strength steel and alloy steel rough turning, milling and planing.
YS30	P25,P30	12.45	91	1800	Alloy ultra fine particles, suitable for large feeding high efficiency milling all kinds of steel, especially the alloy steel milling.
YS5		13.95-14.25	92	2000	It is belong ultra fine grain alloy, suitable for high speed car, milling, heat-resistant alloy and titanium alloy for the cutters and tap, saw blade milling cutter is best
Cutting steel class grade
YT5	P30	11.50-13.20	90.0	1750	Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions.
YT14	P20	11.20-11.80	91.0	1550	Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate.
YT15	P10	11.10-11.60	91.5	1500	Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended.
YC40	P40	13.00-13.40	89.5	1860	Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.
YW1	M10	12.85-13.40	92.0	1380	Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel.
YW2	M20	12.65-13.35	91.0	1680	Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs.
YW3	M10	12.85-13.10	92.0	1420	It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel.

Company Introduction
About Lihua Cemented Carbide Factory
Established in 1990, specialized in production carbide products more than 20 years and located in Zhuzhou city which is the hometown of tungsten carbide in China.
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc.
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter woodworking tool, V-cutter, Shoes cutter ects. Any kinds of customized carbide products can be made.
Monthly Capacity of 15 Tons
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity has up to 15 Tons per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
