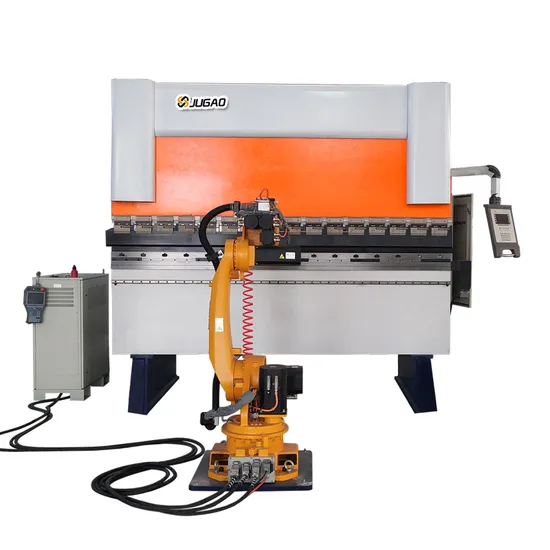

Press Brake 250t/3200 with Esa S530 4+1 Axis CNC Robotic Press Brake Bending
| US$4,500.00-32,500.00 | 1 Piece (MOQ) |
Basic Info.
Certification
CE
Automation
Automatic
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Main Motor
Siemens From Germany Brand
Tubing Connector
Emb Form Germany Brand
Hydraulic System
Bosch-Rexroth Form Germany
Electrical Components
Schneider Electrical From French
Servo Motor/ Servo Drive
Yaskawa From Japan Brand
Product Name
CNC Press Brake Machine
Control System
S530 CNC System
Transport Package
Wooden Cases for CNC Press Brake
Trademark
JUGAO
Origin
China
Production Capacity
30set/Month
Product Description
Press Brake 250T/3200 With ESA S530 4+1 Axis CNC Robotic Press Brake Bending1. Multi-language CNC operating system
2. Silent and reliable internal gear pump
3. Hydraulic system regulated by proportional valves
4. Combination of brushless drive and motor with "can open" digital technology, high precision backgauge which permits permits fast movements of the axes.
5. High precision optical lines
6. Adjustable clampings
7. Hardened, grinded tools and clamps for quick tools adjustment
8. Complete backgauge fingers on double linear guide
9. Stainless steel front supports adjustable in height
10. Automatic mechanical crowning
11. Electrical panel with high quality components
12. European safety standards Start&Stop system
Technical parameter
| Model | Nominal Pressure (kn) | Length of table (mm) | Distance Between Housing (mm) | Throat Depth (mm) | Stroke (mm) | Open Hight(mm) | Main Motor (kw) | Dimensions (L × W × H)(mm) |
| 40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 | 2545×1510×2050 |
| 40/2500 | 400 | 2500 | 2000 | 200 | 110 | 335 | 4 | 2950×1510×2080 |
| 63/2000 | 630 | 2000 | 1600 | 250 | 110 | 350 | 5.5 | 2555×1600×2130 |
| 63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 | 2960×1600×2180 |
| 63/3200 | 630 | 3200 | 2600 | 250 | 110 | 350 | 5.5 | 3740×1600×2230 |
| 100/2500 | 1000 | 2500 | 2000 | 350 | 150 | 400 | 7.5 | 2980×1650×2330 |
| 100/3200 | 1000 | 3200 | 2600 | 350 | 150 | 400 | 7.5 | 3740×1650×2355 |
| 100/4000 | 1000 | 4000 | 3200 | 350 | 150 | 400 | 7.5 | 4550×1650×2450 |
| 100/5000 | 1000 | 5000 | 4000 | 350 | 150 | 400 | 7.5 | 5100×1500×2650 |
| 125/2500 | 1250 | 2500 | 2000 | 350 | 150 | 410 | 7.5 | 3980×1650×2370 |
| 125/3200 | 1250 | 3200 | 2600 | 350 | 150 | 410 | 7.5 | 3750×1650×2450 |
| 125/4000 | 1250 | 4000 | 3200 | 350 | 150 | 410 | 7.5 | 4550×1650×2470 |
| 125/5000 | 1250 | 5000 | 4000 | 350 | 150 | 410 | 7.5 | 5100×1500×2795 |
| 125/6000 | 1250 | 6000 | 4500 | 350 | 150 | 410 | 7.5 | 6100×1500×2895 |
| 160/2500 | 1600 | 2500 | 2000 | 350 | 150 | 425 | 11 | 2980×1715×2410 |
| 160/3200 | 1600 | 3200 | 2550 | 350 | 150 | 425 | 11 | 3750×1715×2450 |
| 160/4000 | 1600 | 4000 | 3200 | 350 | 190 | 450 | 11 | 4550×1715×2730 |
| 160/5000 | 1600 | 5000 | 4000 | 350 | 190 | 450 | 11 | 5100×1570×2900 |
| 160/6000 | 1600 | 6000 | 4500 | 350 | 190 | 450 | 11 | 6100×1570×3010 |
| 200/3200 | 2000 | 3200 | 2600 | 350 | 240 | 460 | 11 | 3750×1815×2715 |
