Heavy-Duty Hydraulic Disc Harrow (1BZ series)
| Negotiable | 2 Pieces (MOQ) |
Basic Info.
Model NO.
1BZ-1.8/2.2/2.5/3.0/3.4
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Color
Green
Warranty
One Year
Overall Dimension
532*288*134
Weight
1380-1430
Working Width
2.5
Working Depth
20
No of Disc
24
Matched Power
55-73.5
Dia.of Disc
660
Transport Package
Iron Shellframe Box
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China Shandong
HS Code
8432290000
Production Capacity
5000sets/Year
Product Description

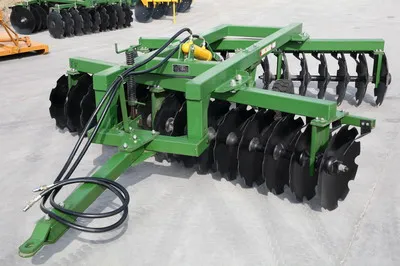

Heavy-duty disc harrowThe series heavy-duty offset disc harrow are mainly used for cleaning away stubble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
Specifications:
| Model | Unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| Overall size | cm | 480*200*134 | 482*244*134 | 532*288*134 | 532*332*134 | 582*376*134 |
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
| Working width | m | 1.8 | 2.0 | 2.5 | 3.0 | 3.4 |
| Working depth | cm | 20 | ||||
| Disc space | mm | 230 | ||||
| Qty. of disc | pc | 16 | 20 | 24 | 28 | 32 |
| Dia. Of disc | mm | 660 | ||||
| Ground clearance | mm | >160 | ||||
| Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
| Matched power | hp | 65-80 | 75-90 | 80-100 | 90-100 | 100-120 |
| Linkage | Trailed | |||||
