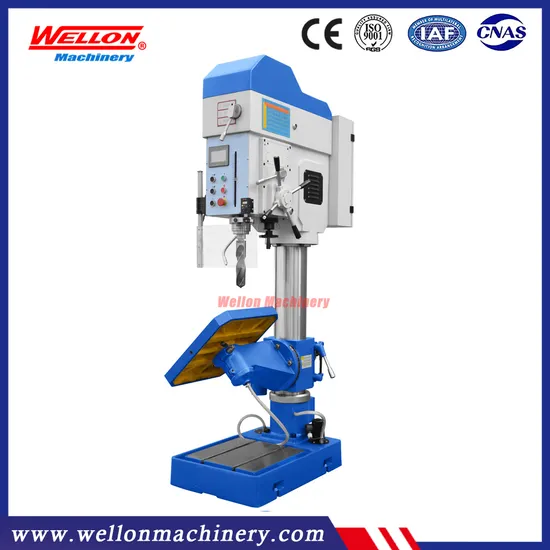

Variable Spindle Speed Vertical Column Drilling Machine ZWB5050

Product Description

Product Description
Detailed Photos


Performence Features: Spindle auto feeding.
Threading function.
Tilting rotary table -45 to + 45 degree.
Drilling depth indicator.
Electronic spindle and feed rate indicator.
High spindle rigidity.
Threading by automatic switching of the left turns.
Left turn switch.
Headstock, column, table and column base made of the highest quality components.
Spindle and transmission shafts of hardened and heat treated steel.
Top-class electric motor.
A large spindle stroke.
Readable control panel.
Working table automatically lifted with 360 rotation and assembly grooves.
Product Parameters

Technical parameter:

Model	ZWB5050
Max drilling capacity	50 mm
Max threading capacity	M30
Column diameter	180 mm
Spindle stroke	240 mm
Distance from spindle to column	360 mm
Distance from spindle to table	540 mm
Distance from spindle to base	1130 mm
Spindle taper	MT5
Spindle speed	50-200/200-2000 r/min
Spindle feed rate	20-204 mm/min
Table size	470 x 390 mm
Base size	450 x 460 mm
Main motor power	3.0 kW
Feed motor power	90w
Coolant motor power	40 w
Weight	845/905 kg
Packing size	117x68x239cm

Standard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
