Taijia ultrasonic pulse velocity meter ultrasonic detector ultrasonic scanning apparatus

Product Description

Product Description

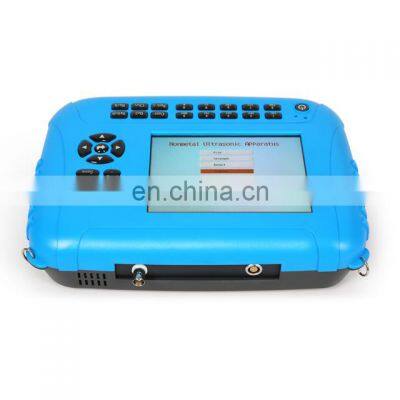

Product DescriptionPurpose Of CJ-10 Ultrasonic Pluse Detector1.Testing of building foundation piles by cross-hole sonic logging 2.Inspection of concrete defects by ultrasonic method such as uncompacted , cellular, hole area. 3.Detecting defects of one hole by one trigger two receive. 4.Testing dynam performance of geotechnical investigation rock concrete etc.SpecificationitemCJ-10 Ultrasonic Pulse DetectorPlace of OriginChinaBrand NameTmeasurementModel NumberCJ-10Temperature-10℃ + 40℃Weight260mm x 185mm x 60mmSample Periods0.05μs~6.4 8μs grades electableAmplifier band width5KHz~500 kHzAmplifier gain82dBReceive sensitivity<= 30μvTrigger Voltage(V)65,125,250,500,1000 selectableReceive ChannelTwoInterfaceUSBStorage1G Internal 2G U-DiskFeaturesCJ-10 Ultrasonic Pluse Detector1.High efficient testing. Lifting speed is more than 60m/s.( 20 cm distance )2.Display the test data graphically. User can watch analyze result directly3.Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency; 4.Humanized software design. Software design apply to User and construction plant. its help information ensure user handle easily 5.Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking reboundapparatus directlyand get strength of concrete in time. The functions apply for national patent. 6.Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects 7.Can supply smooth power for radial energy transducer needless external power. 8.Standard USB storage with big capacity. 9.Interior lithium battery supply power for apparatus work more than 6 hours. 10.Portable, small, light apparatus (1.75Kg).11.Extending function for testing thickness of concrete by impacting echo method. 12.Professional and powerful analysis softwareon windows system. It can export the data to Excel or word for advanced analysisPacking & DeliveryCarton for CJ-10 Ultrasonic Pulse DetectorCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:commercial@tmeasurement.comTEL:86-411-39685079Whatsapp:+8618842866177web:/Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
