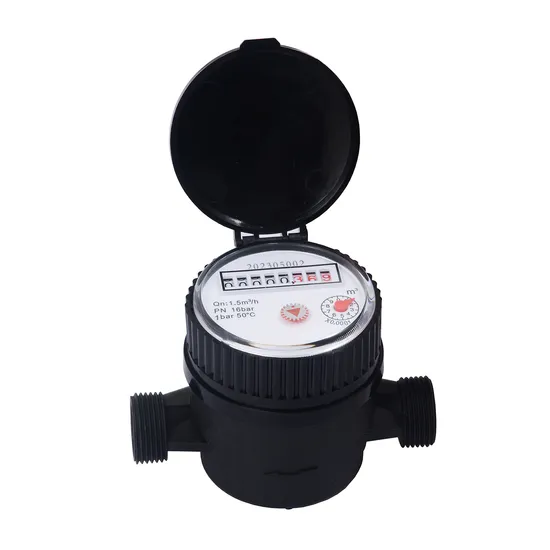

Single Jet Plastic Water Meter Class B
| US$3.00-5.00 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
LXDG-13A-20A
Level Measurement
Class B
Counter Instructions
Digital
Nominal Diameter
15-20
Application
Civil
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Traditional
Transport Package
Export Carton
Specification
Plastic body, plastic connectors
Trademark
OEM
Origin
Ningbo, China
HS Code
9028201000
Production Capacity
100, 000/Month
Product Description
Single-jet, Dry-dial, Magnetic drive, Anti-magnetic Protection
Available for cold water (40°C)
Sizes: DN15-DN20 (1/2"-3/4").
Body material: Nylon Plastic
Accuracy: Class B
MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-1996) Standard
| Size | Class | Qs Overload flow | Qp Nominal flow | Qt Transitional flow | Qmin Min flow | Min reading | Max reading | |
| DN(mm) | Inch | m³/h | L/h | m³ | ||||
| 15 | 1/2" | B | 3 | 1.5 | 120 | 30 | 0.0001 | 99999 |
| 20 | 3/4" | B | 5 | 2.5 | 200 | 50 | 0.0001 | 99999 |
| DN SIZE | Mm Inch | 15 1/2" | 20 3/4" |
| Q4(m³/h) | 3.125 | 5 | |
| Q3(m³/h) | 2.5 | 4 | |
| R80 | Q2(L/h) | 50 | 80 |
| Q1(L/h) | 31.25 | 50 | |
| R100 | Q2(L/h) | 40 | 64 |
| Q1(L/h) | 25 | 40 | |
| Min reading(m³) | 0.00005 | 0.00005 | |
| Max reading(m³) | 99,999 | 99,999 | |
| Max pressure(MAP) | 16 | 16 | |
| Max loss(Δ P) | 63 | 63 | |
| Max temperature | T50 | T50 | |
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
| Meter size | Length(L) | Width(B) | Height(H) | Connecting Thread | Weight(KGS) |
| Dia | |||||
| DN | |||||
| (mm) | mm | ||||
| 15 | 110 | 80 | 80 | G 3/4B | 0.35 |
| 20 | 130 | 80 | 80 | G 1B | 0.45 |
WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Working pressure:≤1.6Mpa
