Manufacturing Triple Axles 40FT Flatbed Semi Trailers for Sale

Product Description

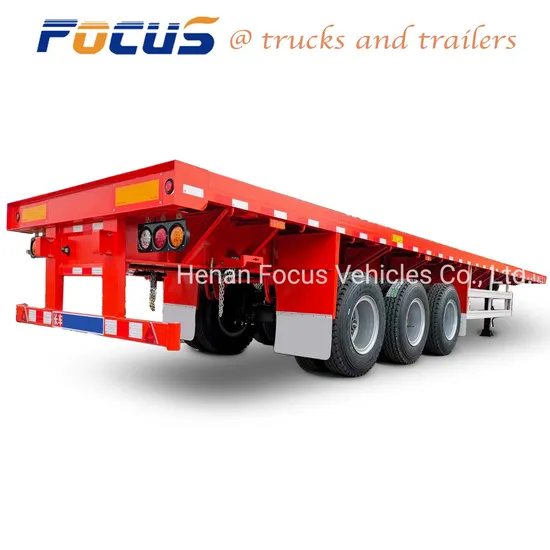

Manufacturing Triple Axles 40FT Flatbed Semi Trailers for Sale

Item	Unit	Quantity		Notice
Size	12400length*2500width*1520height, Detail according to the drawing
Axle	Piece	3	13 Ton FUWA
Tyre	Piece	12	12R22.5
Rim	Piece	12	9.0-22.5
Leaf spring	Piece	6	90width*10pieces*13mmthickness
Braking system	Set		2 line air braking system with air tank, emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system	Set	1	24 volt electrical system. 7 pin electrical connector. Parking. Stop, reverse, number plate and indicator lights. Rear lights conform to European standard, rear front and side reflectors
Suspension	Set	3	The high quality Q345 steel
Relay valve	Whole vehicle	1	WABCO
Landing gear	Pair	1	Jost C200
Kingpin 2"	Piece	1	Jost 50# or 90# Welded
Tie-in	Piece	2	Haldex
Chamber	Piece	2	Stored chamber 2 units T30/30
Upper and lower wing plates			14/16mm, width146mm, Using the highly quality Q345 steel,
Twist locks		12	Can load 1*40FT, 2*20FT, 1*20FT container
Main beam			Height: 500mm webplate: 6mm Using the highly quality Q345 steel
Side beam			16# channel steel
Floor			3mm checkered plate
Cross beam			80*40 cubic tube
Reflectors			Red triangle reflectors at the rear of the trailer and on side
Shotblasting and paint			Chassis is comletely shor blasted to SA 2.5 grade, and painted with first layer of international Zinc Epoxy primer(30 Microns DEF), second layer international high built polyurethane under coat(40 microns DFT), THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat. Total 80-100 microns.
Spare tyre carrier		2	Standard
Color			As client's demand

The flatbed trailer is mainly for containers transportation, it can be customized:
1-trailers can be for 20FT, 30FT, 40FT, 45FT, 48FT, 50FT, 53FT container shipping
2-flatbed or skeleton chassis type
3-Main beam: 500mm height
4-material of the main beam: Q345
5-Suspension: Spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 2 3 4 axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
Our Flatbed trailers advantages:
**Modern design: Double-Groove vertical van, light-weight I beam, arched form longitudinal beams, that make the trailers
Structure super strong and superlight;
**Sound Adaptability: Passed the special processing, the overall frames of the traielrs can stand the actual test of various
Road conditions.
**Superior Material selection: The raw materials are bought from top 5 Steel Mills, and all of other parts are all from top
Suppliers also, like Triangle tyres, Jost landing gear, WEBCO relay valve, we have strict selection requirement for vendors.
**Top configurations: Ensure every trailers with high configurations to decrease the maintaince for clients, and improve the
Trailers with longer service time
Certificate:
HENAN FOCUS VEHICLES Co., Ltd. (Short for Focus Vehicles), is commited to R&D, manufacturing, sales and services of high-end special vehicles. It has been gained good reputation and awarded with honors and titles, such as"HENAN High-tech enterprise", "Trustworthy Brand", "Being committed to supplying high quality equipment and service for urban logistics and transportation", etc. Our mission is to creat more value for clients, employees, partners and shareholds, determined to become a real enterprise being respected in China special vehicles inducstry.
Various of trailers we can provide and be manufactured as special design and with environment protection equipments, Flatbed Semi-trailer, Container Chassis, Low-bed Semi-trailer, Fuel tank Semi-trailer, Bulk Cement Tank Semi-trailer, Fence semi-trailer, Side wall Semi-trailer, Box semi-trailer, Dump Semi-trailer, LPG LNG semi-trailer, Full trailer, Dump truck, fuel tanker truck, water tanker truck, cargo truck, concrete mixturetruck etc with great price and service advantages.
Clients visit
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
Service Promise
1.24-hours hot line at your service, available for quality and extending service.
2. Lifelong free technical guidance service can be provided.
3. For Customers who buy bulk quantity for the first time, we can send service technicians to offer site instruction service
And short- term stationary point service.
4. Free technical training can be provided to help customers use and maintain the trucks and trailers quickly and correctly.
