Dingchen 1880 Toilet Paper/Tissue Paper Making Machine with Capacity

Product Description

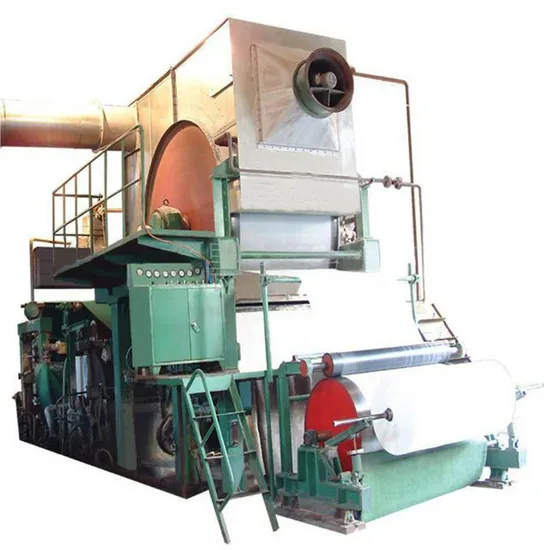

Dingchen toilet tissue paper making machine 5TD using wood
Product Description

Technical parameter
1.Raw material: wood / bamboo
2. Output paper: tissue paper
3. Output paper weight: 14-30g/m2
4. Net paper width: 1880mm
5. Capacity: 5T/D (24hours)
6. Working speed: 60-130m/min
7. Designing working speed: 180m/min
8. Wire width: 2300mm
9. Rail gauge:2900mm
10. Drive way: A/C inverter speed-adjusting, sectional drive
The structure and specifications of paper machine
1. Cylinder mold part
Φ1500mm×2300mm×2900mm stainless-steel cylinder mold 1set. Φ450mm×2300mm×2900mmcouch roll 1 set, coated by rubber, rubber hardness 38±2SR, cylinder mold vat 1 set

2. Dryer part
Φ2500mm×2300mm×2900mm alloy dryer cylinder 1 set, with double-layer breath exhaust hood, Φ550mm×2300mm×2900mm touch roll 1 set, coated by rubber, rubber hardness 90±2SR, pneumatic scraper blade 2 sets, pneumatic pressure device

3. Winding part:
1880 mm cooling winding drum 1 set
Main equipment for stock preparation

No.	Item
1	5m3 hydra-pulper
2	380mm pulp refiner
3	606 sand remover
4	700 propeller
5	Bleacher
6	pressure screen
7	-100 pulp pup
8	-150 water pump
9	Electric operation cabinet

Wastepaper to produce toilet paper technological process:
Waste paper or primary pulp ------ Hydrapulper ------ Vibrating screen ------ Pulp tank ------ Potcher ------ Pulp tank ----- Pulp grinder ------ Pulp tank ----- Centrifugal screen ----- Toilet paper machine ---- Rewinding perforating embossing machine ----- Paper saw ---Pack

(II). Machine list of paper making line:
No.	Equipment			Qty (SET)
1	1880mm single-cylinder single-wire and single-felt toilet paper machine.			1
2	Exhaust hood of drier can (Duplex)			1
3	φ800 Screw type ventilator			1
4	mesh vat			1
5	15 Type roots pump			1
6	Suction box			1
7	Air pump			1
8	Electric converting control cubicle			1
9	the whole set of work bench			1
(III). Motor list of paper making line:
No.	Electromotor	Power(KW)	Qty(set)	Total power(kw)
1	First cylinder part	30	1	30
2	Winding machine	4	1	4
3	Screw type ventilator	4	1	4
4	Air pump	7.5	1	7.5
5	Vacuum pump	22	1	22
Total
III. Pulp making line
(I). Machine list of pulp making line:
No.	Equipment			Qty (SET)
1	5m3 High consistency hydrapulper			1
2	2m2 high vibrating screen			1
3	35m3 potcher			3
4	380 Double disks refiner			2
5	Pressure screen			1
6	700 Thruster			5
7	606 desander 12 pcs			1
8	Alternating pulp pump-150			4
9	Alternating pulp pump-100			6
10	Alternating pulp pump-200			2
IV. Further processing making line:
No.	Equipment			Qty (SET)
1	1880mm rewinding, perforating embossing machine			1
2	Slitter			1
3	sealing machine			1
V. Boiler
No.	Equipment			Qty (SET)
1	2 ton / hour boiler			1
