Product Description

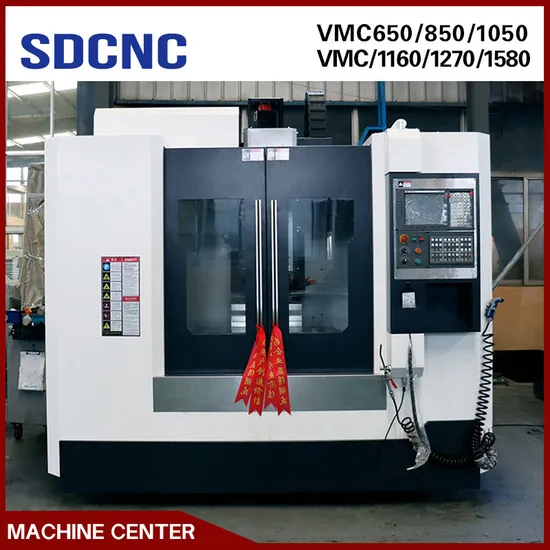

Vertical Machining Center Vmc850
VMC850 is a versatile and high-quality machining center that is widely used in mechanical processing and mold manufacturing industries
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product Description

High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos
Detail View
Product Parameters
Main configuration & accessories:
1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Taiwan production pneumatic cylinder;
4. Taiwan ATC, carousel type and disc type are available as option;
5. Headstock balancing system have heavy casting or nitrogen balance system as option;
6. Full enclosed cover;
7. Rigid tapping;
8. Work lamp;
9. USB and Internet interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;
Technical Parameter:

Model	VMC850
table size	1000*500mm
Max. table load	600kg
T slot qty-width*distance	5-18*100
spindle speed	8000rpm
spindle nose to table surface	150-650mm
Spindle center to Column surface	580mm
Spindle taper	BT40
Main motor power	7.5kw
Three-axis servo motor power	2.0/2.0/3.0kw
Force on X, Y, Z axes	10/10/15Nm
X axis travel	800mm
Y axis travel	500mm
Z axis travel	500mm
X/Y/Z axis rapid feed	48/48/48 m/min
Feeding rate	10 m/min
Tool changer type	24 Tools disc type
Max. tool length	350mm
Max. Tool diameter	φ100
Max.tool(kinfe) weight	7kg
Positioning accuracy	±0.007 mm
Repeat positioning accuracy	±0.004mm
Net Weight	6000kg
Overall Dimension	2800*2250*2700mm

Standard Accessories:Fanuc 0i-MF CNC control system,High speed spindle 8000rpm from Taiwan ,24 tools ATC from Taiwan,3-Axis linear guideway from Taiwan,Full-cover protection,Tri-color indication lamp,Heat exchanger in cabinet,Movable pulse generator, Coolant system,Auto-lubrication,
Work lamp,
Air gun,
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
