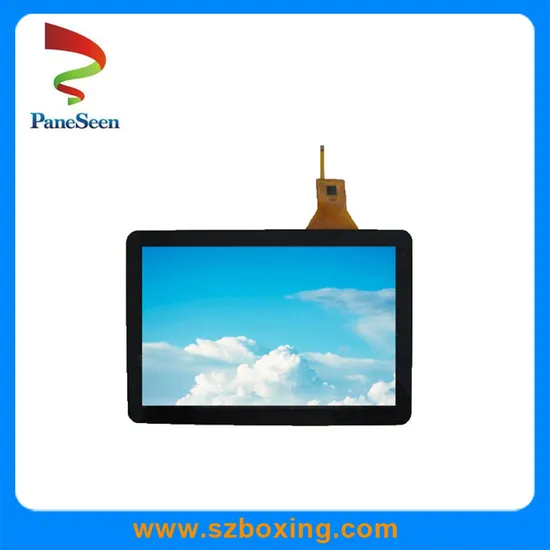

10.1 Inch 1280*800 Lvds Interface IPS LCD Touch Screen Module

Product Description

10.1 Inch 1280*800 LCD Touch Screen with CTP
1.Basic information of 10.1" TFT LCD screen: Key Specifications/Special Features: Panel type: a-Si TFT LCD with capacitive touch panel Panel size: 10.1 inches LCD digital: TFT digital Resolution: 1280 (RGB) x 800 pixels Brightness: 350cd/m² (typical) Outline dimensions: 229.46 x 149.1 x 1.07mm (type) Active area (H x V): 216.96 x 135.6mm Contrast ratio: 800:1 (type) Pixel arrangement: RGB vertically stripe Display mode: normally white Surface treatment: anti-glare Operating temperatures: 0 to 50°C Storage temperatures: -20 to 60°C Viewing angles: 85/85/85/85° (type) (CR ≥10) Backlight: LED Aspect ratio: 16:9 With the RoHS Directive-compliant Compatible with NTSC and PAL systems Image reversion: up/down and left/right
2. Company Advantage:
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions
3. Applications of tft lcd screen:
PDAS/consumer electronics/automotive/ telecoms and data transfer/medical instruments/security management /signs and display/point of sale, EPOS /Energy control/amusement and gambling machines/white goods, GPS navigator
4. Quality Control:
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
5. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
6.

Optical Specifications
Item	Symbol	Condition	Values			Unit
			Min.	Typ.	Max.
Viewing angle(CR≥10)	θL	Φ=180°	75	85	-	degree
	θR	Φ=0°	75	85	-
	θT	Φ=90°	75	85
	θB	Φ=270°	75	85	-
Response time	TON	Normal θ=Φ=0°	-	10	20	msec
	TOFF		-	15	30	msec
Contrast ratio	CR		600	800	-	-
Color Chromaticity	WX		0.27	0.31	0.35	-
	WY		0.28	0.32	0.36	-
Luminance	L		-	350	380	cd/m2
Absolute Max.Rating
Item	Symbol	Value			Unit	Remark
		Min	Typ	Max
Supply voltage	VDD	-0.3	-	3.9	V	-
Operating temperature	TOPR	0	-	50	degree	-
Storage temperature	TSTG	-20	-	60	degree	-
Backlight Driving Conditions
Item	System	Value			Unit	Remark
		Min	Typ	Max
Voltage for LED Backlight	VL	9.0	9.9	10.5	V
Current for LED Backlight	IL		260		mA
LED Life time	-	20,000	-	-	Hr
