High Capacity Chain Conveyor Bucket Elevator for Grain Corn Maiz etc Used in Feed Flour Mill

Product Description

High Capacity Chain Conveyor Bucket Elevator
1. The structure and working principle of the hoist
Bucket elevator is a widely used mechanical conveying equipment. Its working principle is that the traction belt is wound between the head wheel and the bottom wheel, the bucket is fixed on the traction belt at a certain distance, and the shell seals the bucket and the traction belt. , The material enters the moving hopper from the machine base, lifts along the barrel, and is thrown out from the hopper at the machine head, and is discharged out of the machine through the discharge pipe.
The main components of the hoist: shell, head wheel, bottom wheel, traction belt (chain) bucket
2. Features of Bucket Elevator
1) Vertical conveying, compact structure, small footprint, simple;
2) It has good sealing performance and can work in a fully enclosed casing;
3) The lifting height and conveying capacity are large;
4) The sensitivity of overload is high, the bucket and traction parts are easy to be damaged, and it is not suitable for conveying large materials. It must be fed evenly, otherwise it is easy to block.

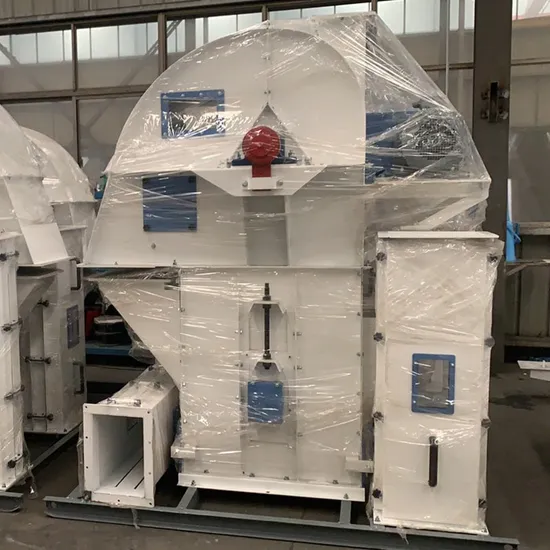

Bucket Elevator Photo:

ELEVATOR TROUGH ELEVATOR HEAD ELEVATOR TAIL
Bucket Elevator Model:

MODEL	BUCKET TYPE	SPEED	BUCKET DIMENSION	BOLT	CAPACITY M3/H
TDTG36/23	DQ2312	1.28	235×143×96	2-M8×35	20
TDTG36/28	DQ2814	1.59	285×143×96	3-M8×35	35
TDTGk40/23	DQ2314	1.49	235×155×90	2-M8×35	40
TDTGk40/28	DQ2814	1.86	285×155×90	3-M8×35	55
TDTGk50/23	DQ2314	1.49	235×155×90	2-M8×35	60
TDTGk50/28	DQ2814	1.86	285×155×90	3-M8×35	80
TDTGk50/32	DQ3216	2.36	330×165×111	4-M8×35	110
TDTGk60/28	DQ2816	2.31	290×165×108	3-M8×35	120

Good Machines From Good Tools :
LASER CUTTER ROBOT WELDING POWER COATING

Spare Parts :

PVC BELT NYLONE BUCKETS ELEVATOR TROUGH

PERFORMANCE ON SITE
What Types of Project We Can Supply
we can supply full turnkey project as below : @ poultry and large animal feed production line @ premix plant @ fish and shrimp feed prodcution line @ corn flaking line @ wood biomass pellet line @ fertilizer pelleting line
