Plastic Power Mixer
Basic Info.
Model NO.
SRL500/1250
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
800kg/Hr
High Speed Mixer
PVC Mixing Machine
PVC Mixing Machine
Plastic Mixer Machine
Plastic Mixer Machine
PVC Mixer
Mixer Unit
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Disc
Operating type
Cycle Operating
Transport Package
Wood
Specification
sgs
Trademark
middle tech
Origin
Zhangjiagang City
HS Code
84772090
Production Capacity
300kg/Hr
Product Description

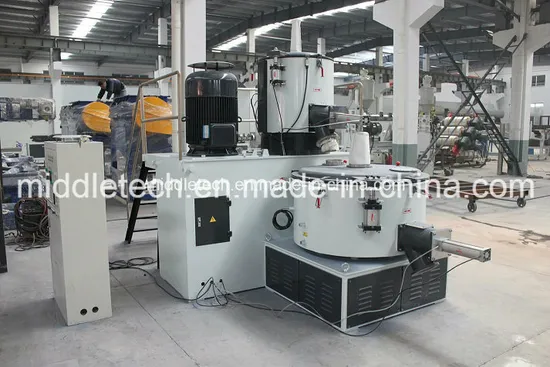

Product DescriptionHigh-Speed Mixer is used in the material mixing, stirring, coloring and other process for plastic, rubber, daily chemical and other industries. It is the perferable equipment to produce plastic board, pipes, profiles and degradable plastics.
Features:
1. Mixed materials are made by negative pressure mixed principle
2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing
4. The blade was made by stainless steel pressure and passed the static and dynamic balance test
5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
Certificate: ISO9001: 2008, CE, SGS
| SRL-Z | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool |
| Total volume (L) | 100/200 | 200/500 | 300/600 | 500/1250 | 800/1600 |
| Effective capacity (L) | 65/130 | 150/320 | 225/380 | 330/750 | 600/1050 |
| Stirring speed (RPM) | 650/1300/200 | 475/950/130 | 475/950/100 | 430/860/70 | 370/740/50 |
| Mixing time (Min.) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Motor power (KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
| Overall dimension(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 5170*3200*4480 |
| Weight(kg) | 2200 | 3400 | 3600 | 6500 | 9800 |
If you need any support, please don't hesitate to call me on phone: 0086-13962227556
