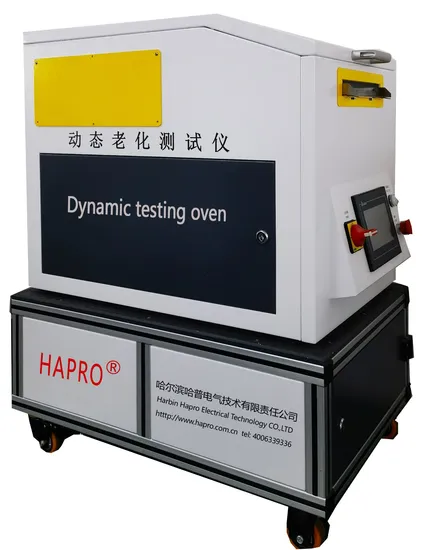

Laboratory Electric Heating Dynimac Testing Oven for Thermal Stability Test

Product Description

Mainly used for testing the thermal stability of polymer powder ,pellet, tubular, laminated samples . Dynamic testing oven can send the sample continuous or discontinuous ,Experimenter could observe the process of sample color changes under different aging time .Testing oven can save the two thirds of test time compared to the traditional oven and turn the sample length into the time scale .Evaluating thermal stability properties of materials by contrasting the color change with colorimeter , Further improve the production process and optimize the product formula, etc.
1.1 The testing principle
The Principle of Dynamic Testing Oven : Keep the samples into the oven with a constant temperature ,Over time ,the samples were gradually exposed to the air, This produce samples color changing effects on the length direction . The discoloration depends on the temperature and duration of exposure.
1.2 The Application of Dynamic Testing Oven Control the quality of your raw materials (powders, pellets) and of your finished produces (pipe, sheet) by determining accurately the integral thermal stability of a wide variety of polymers. Improve your manufacturing procedures by rapidly assessing major processing parameters. Optimize your formulations by carrying out a reproducible evaluation of stabilizers,lubricants and all other additives that may affect the behaviour of a product when it is exposed to heat. It will make you to save over two thirds of the time compared to the traditional oven. Technical parameters:

Photograph	Performance Index	Performance Parameter
	Motor	servo
	Power of Motor	400 W
	Motor Speed	8000r/min
	Tray, L×H×W	A 6 lines:291×6×24 mm B 7 lines:291×7×16 mm
	Preheating time	Setable
	Sampling time	1min
	Aging time	1min~ two months
	HMI	Delta touch screen
	Dynamic speed ratio	1:200000
	Aging temperature	RT ~350ºC
	Temp control system	RKC system
	Heating	Electrical heating
	Heating power	200W×20
	Temperature sensor	J type thermocouple ×4
	Power supply voltage	3-phase 380V
	Weight	350 kg
	Dimension (L×W×H)	841×540×1200mm
