Factory Direct Supply Customized V-Bank H13 Filter High Volume Filter

Product Description

Product Description Applications: Hospital, Pharmaceutical plants, Chip plants, Stockbreeding, Glass screen factory, Photovoltaic plants, PCB factory, Painting booth, Semi-conductor plant, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction works, Energy & Mining,
Filter Frame: Plastic
Filter Media: Fiber glass
Filter efficiency: H14
Media colour: White
Separate material: Hot-melt adhesive
Initial Pressure drop: 380Pa
Maximum temperature:180°F

Part No.	HZJ-H-3320	Efficiency	H13
Filtration grade	HEPA	Type	V-Bank
Size	24x24x12 x4V	Colour	White
Frame	ABS +PP	Filter media	Fiber glass
Max. Temp.	180 °F	Production capacity	1,000pcs per day
Transport Package	Standard carton	Certificates
Place of origin	Jiangsu, China	Warranty	1 year
Air flow	3400m3/h	Resistance	240Pa
Advantages	High capacity for dust collection, compact size	Separate material	Hot-melt adhesive
Application	Hospital, Pharmaceutical plants, Chip plants, Stockbreeding, Glass screen factory, Photovoltaic plants, PCB factory, Painting booth, Semi-conductor plant, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction works, Energy & Mining,

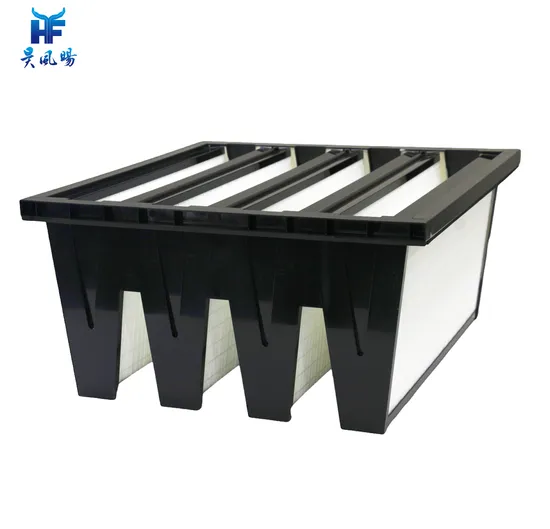

V-bank HEPA filter can extend the filtration areas compares with standard sized filter. It is usually made from cost-effective plastic frames. It can be made of steel frame or aluminium frame for special sizes. V-bank HEPA filter is widely used for applications as Hospital, Pharmaceutical plants, Chip plants, Stockbreeding, Glass screen factory, Photovoltaic plants, PCB factory, Painting booth, Semi-conductor plant, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction works, Energy & Mining, Animal husbandry, there's a great demand for v-bank HEPA filters especially in Animal husbandry industry in recent years.

Metric size(mm)	Imperial size (")	Efficiency	Divider	Frame
592x592x292	24x24x12 x4V	H14	Hot-melt adhesive	Plastic
592x490x292	24x20x12 x4V	H14	Hot-melt adhesive	Plastic
592x287x292	24x12x12 x4V	H14	Hot-melt adhesive	Plastic
610x610x292	24x24x12 x5V	H14	Hot-melt adhesive	Plastic
610x490x292	24x20x12 x5V	H14	Hot-melt adhesive	Plastic
610x305x292	24x12x12 x5V	H14	Hot-melt adhesive	Plastic
592x592x400	24x24x16 x4V	H14	Hot-melt adhesive	Plastic
592x490x400	24x20x16 x4V	H14	Hot-melt adhesive	Plastic
592x287x400	24x12x16 x4V	H14	Hot-melt adhesive	Plastic
*All of size, efficiency and frame material can be customized.

Main ProductsOur main products include: primary filter cotton, middle-effect filter bags, pocket filters, primary, medium and high-efficiency filters, V-BANK filters, FFU, air shower rooms, transfer windows, pass box, air purifiers, fresh air ventilator, static pressure boxes, purification workbenches, laminar air flow hood ,HVAC/AHU/FURNACE filter elements, and other purification equipment, HPEA products, pleated filters, paint stop filters, activated carbon filters, chemical filters, photocatalytic filters, high-temperature resistant filters, replaceable and washable filters, etc.
