High-Performance Swiss Lathe, CNC Sawing Machine for Efficient Machining

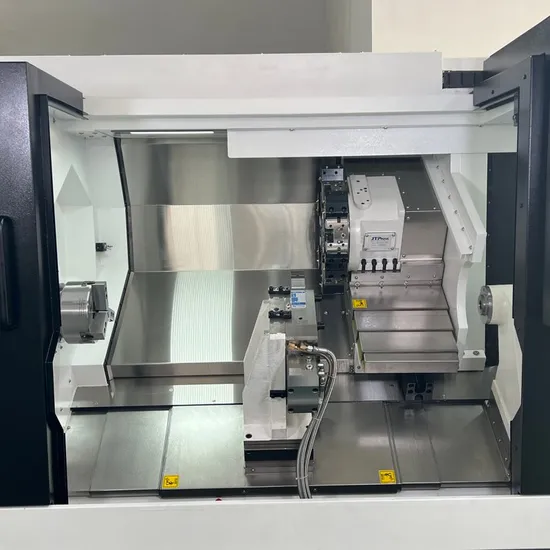

Product Description

-Indestructible Box Guideways for Supreme Heavy Duty Cutting
-Robust 30-Degree Slanted One-Piece Bed Structure Ensuring Unmatched Rigidity
-Innovative Stabilized Unit Structure to Dramatically Minimize Thermal Displacement
-Seamless Integrated Processing Through Cutting-Edge Synchronized Control of Main/Sub Spindle (SY Type)
--Efficient Multi-Tasking Operation with Advanced Wedge Type Y-Axis BMT Turret
Outstanding Rapid Traverse Rate: 30m/min (Z-axis) for Swift Operations
-User-Friendly Ergonomic Design for Effortless Access to Chuck and Tool
Product Parameters

ITEM			UNIT	HD3605SY
CAPACITY	Swing Over the Bed		mm	940
	Swing Over the Carriage		mm	870
	Max.Turning Dia.		mm	300
	Max.Turning Length		mm	1280
	Bar Capacity	Main	mm	119
		Sub	mm	42
SPINDLE	Chuck Size	Main	inch	12"
		Sub	inch	6′′
	Spindle Bore	Main	mm	91
		Sub	mm	42
	Spindle Speed	Main	r/min
		Sub	r/min	4,500
	Motor(Max/Cont.)	Main	kw(HP)	18.5/15
		Sub	kw(HP)	15.5/13.2
	Torque(Max/Cont.)	Main	N·M	543/440
		Sub	N·M	127/74
	Spindle Type	Main	-	BELT
		Sub	-	BUILT-IN
	Spindle Nose	Main	-	A2-11
		Sub	mm	A2-5
	C-axis Indexing		deg	0.001
FEED	Travel	X/Y	mm	265/120{±60}
		Z/ZB	mm	1350/1350
	Rapid Traverse Rate	X/Y	m/min(ipm)	24/10
		Z/ZB	m/min(ipm)	30/24
	Slide Type		-	BOX GUIDE
TURRET	No.of Tools		ea	12[24]
	Tool Size	O.D	mm	25[24Tool:20]
		I.D	mm	40
	Indexing Time		sec/step	0.2
	Y-Axis Type		-	WEDGE TYPE
LIVE TOOL	Milling Tool Speed		r/min	4,000
	Motor(Max/Cont.)		kw(HP)	4.5
	Torque(Max/Cont.)		N·M	76
	Collet Size		mm	∅20{ER32)
	Type		-	BMT65P
TAILSTOCK	Taper		-	-
	Quill Dia.		mm	-
	Quill Travel		mm	-
	Travel		mm	-
TANK CAPACITY	Coolant Tank		ℓ(gal)	225
	Lubricating Tank		ℓ(gal)	3
POWERSUPPLY	Electric Power Supply		kVA	40
	Thickness of Power Cable		mm²	Over 25
	Voltage		V/Hz	220/50
MACHINE	Floor Space(LxW)		mm	4,195x1,978
	Height		mm	1,857
	Weight		kg(lb)	7,600
CNC	Controller-		-	FANUC Oi Series

Detailed Photos
ALL-IN-ONE TYPE OF BED
Optimal Structural Analysis
Revolutionary Structural Analysis for Enhanced Tool Post Body and Reduced Machine Height, Maintaining Exceptional Bed Dynamic Rigidity Even During Intense Heavy-Duty Cutting.
Furthermore, the HD-SY Series Bed Slope is Strategically Designed at 30 Degrees for Unwavering Stable Machining.
Integrated Coolant Tank
Ingenious Structure with Convenient Coolant Tank Placement at the Bed Front. Efficient Chip Removal from the Right Side.
Box Guideway
Every Axis in the HD-SY Series Features Box Guideways for Superior Travel Abilities. These Guideways Excel in Mitigating Vibrations from Intense Heavy-Duty Cutting.
Sealed GIB Structure
X-Axis of HD Series Expertly Designed to Protect Turcite from Chip Damage, Utilizing a Sealed GIB Structure.
Rapid Traverse Rate (X/Y/Z/ZB)
HD 3605Y/SY 24/10/30/24 m/min for Effortless Speed Across Axes
Travel (X/Y/Z/ZB)
HD 3605Y/SY 265/120/1350/1350 mm for Extensive Reach and Precision
Mill Turret
The BMT Turret Rigidly Secures the Tool with Four Bolts and a Key on the Turret's Tool Mounting Surface, Offering Unshakable Rigidity and Precision.
Mill Tool Holder
Enhanced Machining Capabilities with the Introduction of Straight Milling Head Tool Holder for Side Machining and Angular Milling Head Tool Holder for I.D. Operations.
BMT 65P (HD3605Y/SY)
Speed(rpm): 4000 r/min for Swift and Efficient Machining
Collet Size: ø20 (ER32) for Versatile Tool Holding
Indexing Time: 0.2 sec/step for Rapid Tool Changes
Suzhou Wugan Intelligent Equipment Co., Ltd. shines as a leader in crafting high-performance CNC lathes and turning centers, leveraging the latest international lathe technology. These machines combine advanced design with high rigidity, precision, and productivity, providing customers with unmatched cutting performance and an exquisite appearance. Acknowledging the diverse needs of our clientele, we offer a high-performance mill-turn combined model that seamlessly integrates turning, milling, and drilling into a single machine. This versatility not only boosts product output but also ensures that our lathes meet the varied processing demands of different industries effortlessly.
