UE/150 Pet Injection Molding Machine
| US$1.00-2.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
UE/150
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Transport Package
Wooden Pallet
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y
Product Description
PET IMM:PET professional barrel and screw, increased motor,

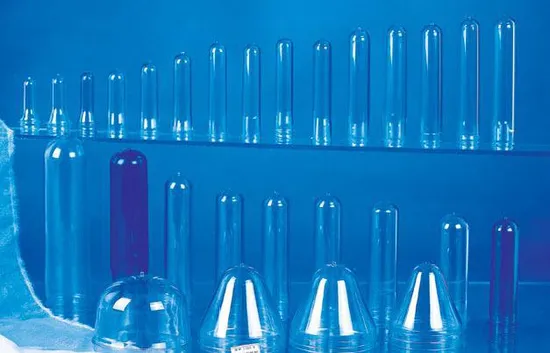

Mainly produces PET bottle and PET material plastic products
Parameters:
| PET STYLE SPECIFICATION | UE/150 | |||
| SCREW TYPE | A | B | C | |
| Injection Unit | ||||
| Screw diameter | mm | 38 | 42 | 45 |
| Screw L/D ratio | L/D | 25 | 25 | 25 |
| Shot volume(theoretical) | CM3 | 227 | 277 | 318 |
| Injection weight(PET) | g | 283 | 345 | 396 |
| Injection rate | g/s | 129 | 158 | 181 |
| Injection pressure | MPA | 209 | 171 | 149 |
| Screw speed | rpm | 150 | ||
| Clamping Unit | ||||
| Clamping force | KN | 1500 | ||
| Open stroke | mm | 380 | ||
| Space between tie-bars(W*H) | mm | 460*420 | ||
| Max mould height | mm | 450 | ||
| Min mould height | mm | 160 | ||
| Ejector stroke | mm | 120 | ||
| Ejector force | KN | 50 | ||
| Others | ||||
| Max pump pressure | MPA | 16 | ||
| Pump Motor power | KW | 18.5 | ||
| Heating power | KW | 9.3 | ||
| Numbers of heating area | Segment | 3+1 | ||
| Machine dimension(L*W*H) | M | 4.6*1.45*2.1 | ||
| Oil tank cubage | L | 270 | ||
| Machine weight | TON | 4 | ||
Configuration List:
| Name | Brand |
| Computer | KEBA(AUSTRIA) or EST |
| Servo Drive | INOVANCE(CHINA) |
| Servo Pump | SUNNY(USA) / SUMITOMO(JAPAN) |
| Servo Motor | PHASE(ITALY) |
| Electro-hydraulic Proportion valve | HNC (Taiwan) |
| Stroke transducer | NOVO or Miran(GERMANY)/GERFRAN(ITALY) |
| Breaker | Schneider (FRANCEN)/Siemens(GERMANY) |
| Contacts | Schneider (FRANCEN)/Siemens(GERMANY) |
| Switch | Schneider (FRANCEN)/Siemens(GERMANY) |
| Hydraulic Direction Valve | Vickers (USA) or Rexroth (GERMANY) |
| Plasticing Motor | DINAMIC(ITALY) or STF(ENGLAND) |
| Hydraulic Hose | MANULI(ITALY)/CONTINENTAI(GERMANY) |
| Plasticing speed sensor | OMRON |
| Sealing ring | HALITE or TREIIEBORG(UK or GERMANY) |
