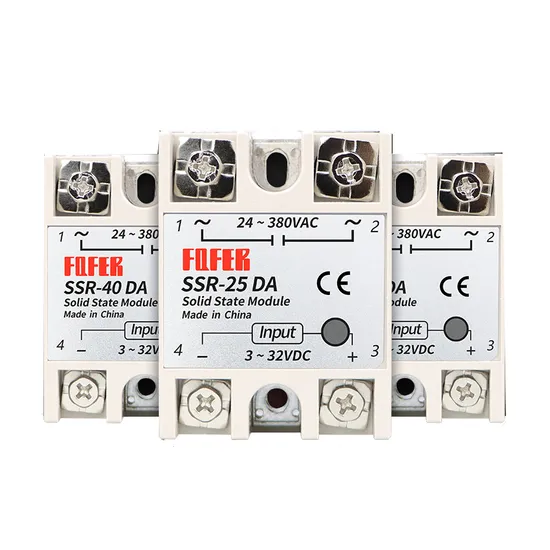

220V Industrial DC to AC 100A 25da 40da 50A 60da 100A Solid State Relay SSR

Product Description

Product Description

Outine Dimension(mm)		62.0Lx44.0Wx23.0H
Load Current		10A,25A,40,50A,60A,75A,80A,90A
Load Voltage		24-380VDC(Basic model)
Control Voltage		3-32VDC
Control Current		DC3-25mA
On Voltage		≤1.5V
Off leakage Current		≤2mA
On-off time		≤10mS
Dielectric Strength		2500VAC
Insulation Resistance		1000MΩ/500VDC
Ambient Temperature		-30~+75°C
Mounting Mthods		Bolt Fixing
Working Station Indicator		LED
Weight		132g

Product advantages
1: The core components of solid state relay have quick switching speed and high withstand voltage
2: The high-strength screw is made of stainless steel, which is not easy to break and slip.
The column is made of red copper
3: Strong shell, made of excellent high temperature flame retardant materials, shiny and durable
4: The zinc low plate has obvious heat dissipation effect, and it is not easy to heat up after long use
