Full Automatic Maxi Roll Toilet Paper Kitchen Towel Making Machinery

Full Automatic Maxi Roll Toilet Paper Kitchen Towel Making Machinery

US$80,000.00-110,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HT-XPZ01
Real Running speed
350-400PCS/min
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
After-sales Service
Door to Door or Online Sevices
Power
15kw
Driving System
Timing Belt
Weight
27000kg
Finash Roll Diamete
150-280mm
Transport Package
Wooden Cases
Specification
3000× 3600× 4000×
Trademark
HUITONG
Origin
China
HS Code
8422400000
Production Capacity
500m/Min

Product Description

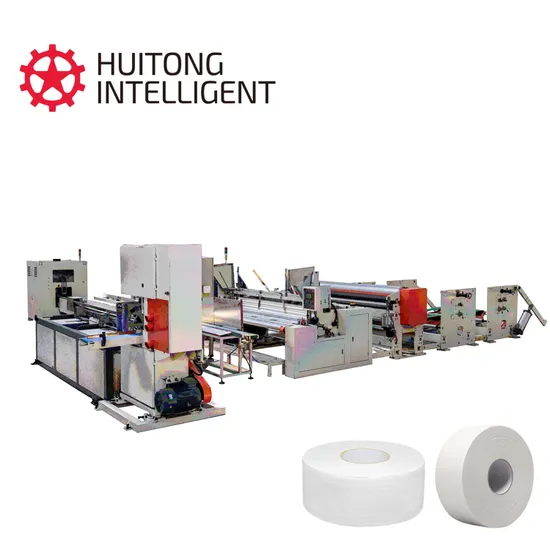

Automatic Maxi roll production line
Product Description Equipment performance description:
High speed automatic rewinder adopts PLC programming control, rotary large screen color man-machine interface operation, Chinese and English one-click switching independent language environment operation, mechatronic and optical integration control and other international advanced technologies to achieve a high degree of automation and humanization.

Ready to embark on a lucrative venture in toilet paper rollsproduction? Discover the essential machinery you need to succeed!
1. One Set of Highly Efficient Facial Tissue Folding Machine
2. One Set of Precision Facial Tissue Cutting Machine
3. One Set of Advanced Facial Tissue Packing Machine 4. One Set of Bundling Packing Machine for Ultimate Efficiency
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Sophisticated Functions The maximum operational speed of the Automatic Maxi roll production line , achieving an impressive rate of 300-500m/min ♦ Intuitive operation and minimal maintenance, maximizing space efficiency with only one operator needed to transfer tissue logs post-operation ♦ Leverage our automatic cutting machine to dramatically boost production efficiency and ensure pristine tissues, free from human contamination ♦ Automatic shutdown feature when paper breaks, conserving resources by preventing undue waste Remarkable Features: 1. The side plate of the machine head is fastened with steel plate screws to ensure high-speed and stable operation;
2, the dynamic balance speed of the winding roller is 500 meters/min;
3, design pipe dropping device;
4, supporting base paper feed rack, suitable for 2.2 meters diameter, weight less than 2 tons of base paper;
5, each group of rear frame adopts three belts to transport the base paper, conveyor belt width 200MM; 6. State-of-the-art operation system featuring imported PLC and frequency conversion speed regulation for superior control.
Detailed Photos

Product Parameters
Key Technical Parameters:
1. Cutting-edge Tissues Fold Machine
Machine model HT-XPZ01
Finished products unfolded size 180*210mm±2mm
Folding products size 90*(120-210)±2mm
Width of Jumbo rol 2950-3950mm
Finash roll diameter ≤1500mm
Raw material core diameter 2000-3000mm
Out put (8 hours) 8000~10000Kg
Embossing unit Steel to paper or steel to steel, Steel to steel edge embossing ,independent pneumatic regulation
Power 7.5KW Main motor
3.0KW(2set) Unwind
Vacuum suction unit 47KW Fan
Pneumatic system 3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system Timing belt
Dimension 8700X3500X7000mm
Weight 15ton

2. Advanced Toilet paper Auto Log Separator integrated into the machine
No. Item Technical parameter
1 Sub-stack function Adopts 4sets servo controlling, can achieve automatic separating
2 Sub-stack structure Wall panel frame type
3 Sub-stack slide All sub-stack slides adopt imported linear bearings, and adopt double-shaft structure to ensure the stability of each sub-stack part
4 Main sub-stack parts All parts are aluminum alloy and processed by CNC machining center to ensure the accuracy of sub-stacking
5 Paper output baffle All are processed by imported aluminum alloy to ensure the result of paper output
6 Sub-stack pneumatic part Adopts AIRTAC pneumatic parts to ensure the accuracy of sub-stacking
7 Paper pieces tracking Using high-precision encoder
8 Sub-stacking draws adjusting Set on touch screen, can 100% accuratly adjust the draws(set based on even draws)
9 Set draws range 2layers, 100-200draws; three layers, 60-150draws
10 Sub-stacking times Max sub-stacking 10times/min
11 Controlling method when machine common stop, it must finish the whole stack then can stop machine
13 Paper support part Stainless steel is used to ensure the strength and rigidity of supporting semi-finished products at high speed
14 Sub-stacking servo motor power 15KW
15 Compressed air pressure ≥0.6MPa
16 Gas consumption 1000L/shift
17 Air pressure 24V
