Pusher Centrifuge for Chemical Industry Hr
| US$4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HR
Type
Centrifuge
Separation Mode
Filter Type
Operating Type
Continuous Type
Installation
Horizontal
Centrifuge Type
Two Stage Piston Pushing
Pressure
Medium Pressure
Condition
New
Material
Stainless Steel
Motor
ABB
Touch Screen
Siemens
Inverter
ABB
Transport Package
Wooden Package
Specification
According to model choose
Trademark
Shenzhou
Origin
China
HS Code
8421192000
Production Capacity
100 Sets Per Year
Packaging & Delivery
Package Size
320.00cm * 146.00cm * 153.00cm
Package Gross Weight
360.000kg
Product Description

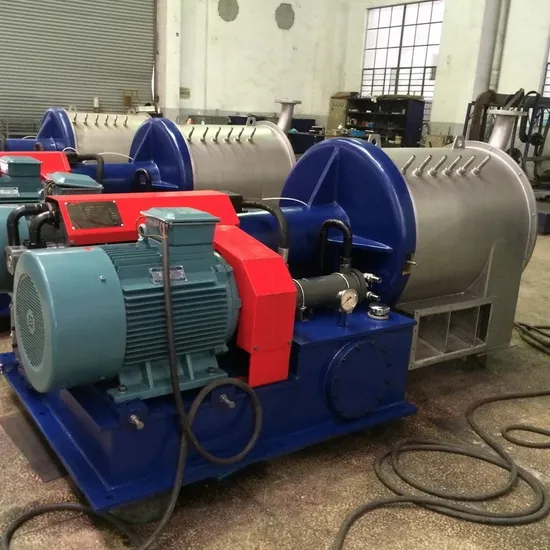

Automatic and Continuous Large Capacity Pusher CentrifugeIntroduction :HR (P) Type Two Stage Pusher Centrifuge is kind of two stage piston push and continuous operating filtration centrifuge , it can complete all the operation of feeding, separating ,drying and discharging at full speed .
It has the advantages of large production capacity, good solid phase dehydration, low energy consumption and light weight.
Application :
Widely used in chemical industry, chemical fertilizer, salt, alkali, pharmaceutical, food, light industry and other industries.
Typical application materials include: sodium chloride, potassium chloride, ammonium chloride, potassium sulfate, sodium sulfate, mirabilite, ammonium sulfate, potassium carbonate, sodium hydroxide, nitrocellulose, cellulose acetate, potassium dihydrogen phosphate, urotropine, and other sulfates, carbonates, nitrates, phosphates,cyanuric acid etc.
Working Condition: Feeding solid content ≥ 30% , Solid particle : 0.02-5 mm
| Items | HR320 | HR400 | HR500 | HR630 | HR800 | HR1000 | HR1200 |
| Basket stage | 1~2 | 1~2 | 1~2 | 1~3 | 1~3 | 1~3 | 1~3 |
| Max.Basket Dia (mm) | 320 | 400 | 500 | 630 | 800 | 1000 | 1200 |
| Max.Rotating speed(r/min) | 2900 | 2500 | 2100 | 1600 | 1200 | 1200 | 900 |
| G-Force | 1560 | 1500 | 1400 | 900 | 645 | 852 | 543 |
| Max.Basket Length(mm) | 320 | 330 | 410 | 440 | 550 | 670 | 670 |
| Piston Travel | 50 | 50 | 50 | 50 | 50 | 60 | 60 |
| Pusher Driving | Hydraulic pressure | ||||||
