Middle Speed Intelligent Ultrasonic Paper Cup Machine Steady at 150PCS/Min

Product Description

Product Description
Brief Description

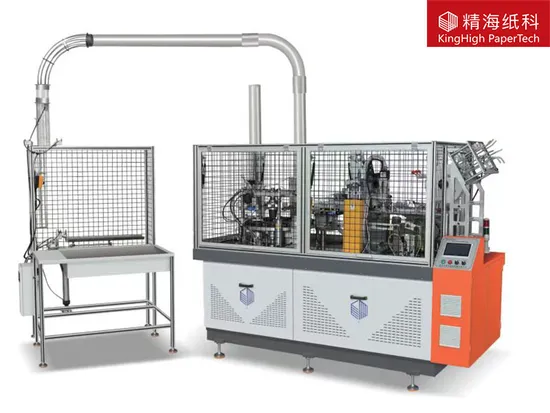

KH-SC128, a latest developed high speed paper cup machine, achieves a stable cup making speed of 120-130pcs/min and in the actual development test, the maximum speed can reach more than 140-150pcs/min. we reversed the previous design and redesigned a more optimized mechanical transmission and forming system. Whole machine main transmission parts are equipped with automatic spray oil lubrication system to reduce wear and tear. Its new designed open type intermittent cam system and helical gear transmission are more efficient and compact.
Cup wall and the bottom of the cup are sealed with bottom heaters and ultrasonic side welder. The whole cup making process is controlled and monitored by inverter, servo feeding, PLC, human-computer interaction touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc., thereby improving the performance of the equipment and achieving fast and stable running. High degree of automation and automatic shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety. Sample
Product Parameters
TECHNICAL PARAMETERS

Model	KH-SC128
Paper Cup Specification	4-16oz (100-450ml) (mold exchangeable) Top: 55-90mm Height: 50-135mm Bottom: 40-75mm Bottom depth: 5-12mm
Paper Specification	190-350 GSM single/double PE coated paper
Production Capacity	120-150pcs/min
Power Source	380V 50HZ 3Phases
Average Power	15KW (Total Power: 24KW)
Air Supply Requirement	Compressed air: 0.6-0.8Mpa Air outlet: 0.5m³/min
Total Weight	3200KG
Package Size	(L*W*H): 3100*1600*1900mm Machine (L*W*H): 1300*600*1900mm Cup collector

Our Advantages
MAHICNE FEATURES
1.This machine adopts intermittent indexing cam mechanism of open type.
2.Gear transmission and vertical axis structure contribute to a reasonable distribution of various functional components.
3. The whole machine uses automatic spray lubrication system, reducing the wear of machine parts .
4.The body of paper cup and the bottom of cup portion bonded by Swiss (Leister brand) heater, ensuring the stability of adhesion .
5.Two times curling , first one is rotating curling , second one is heating stereotypes , which improves the forming strength of paper cup, cup mouth beauty and paper cup size stability .
6.PLC control is used in cup forming, photoelectric eye is adopted in the entire failure control process.
7.Servo motor paper feeding improves equipment stability, achieves fast steady running, implements automatic fault stop and largely reduces labor cost.
8. The machine adopts simplified process system, combining paper feeding, sealing, bottom paper feeding, up cup, heating, cup bottom rolling,cup bottom knurling, cup top curling, cup discharge, detection, automatic counting, cup collection in one.
9.The most suitable cup height size is from 50 to 135 m

Detailed Photos


FAQ
1: Are you a manufacturer?
Yes,We have been in making paper cup machine for nearly 7 years We have our own workshop,
and nearly 60 workers here.
2:What about the payment term ?
Mostly 30%T/T in advanced,the rest need paid before shipping.
3:Where is your factory location?
We Are Location In Feiyun District ,Feiyun Street Ruian City,Zhejiang Province,China

4:How's your after-sale service?
we offers one year warrantyr and we can send to you freely if there is any spare part broken because of our reason.
Our engineers can also go to your factory to install machines and train your workers.
5:What about the Delivery time?
Within 40-50 days after receipt of advance payment and cup sample
