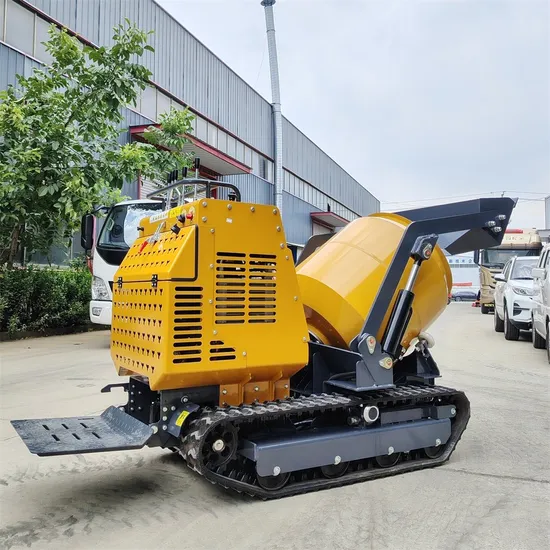

Concrete Pump Gearbox 10kw Mixing Power 400L Crawler Concrete Mixer

Product Description

Product Description

Cheap price concrete mixer machine crawler self loading 0.5 ton concrete mixer truck for sale
The crawler mini concrete mixer machine is very useful in the agriculture and forest industry working It can save much manual working and high efficient;it is widely used by so many customers. Free crawler transporter in mud, cicy roads,Dump design,Crawler walking,Diesel engine to walk,A great deal of extended use power.Specific size can be customized according to demand.Carrying capacity is strong,Climbing ability,simplicity of operator,Maintenance easy.
Product Parameters

Type	YH-JBC400
	Metric Units	Imperial Units
Lengths	2750mm	108inch
Widths	900mm	35.4inch
Height	1300mm	51.1inch
Mixing tank Capacity	0.4 m³	14.13 ft3
Bucket Capacity	0.04 m³	1.41 ft3
Unloading angle	57°/47°
Engine	Briggs&Stratton
Fuel	Gasoline
Rated power	10Kw	13.5 Hp
Rated speed	3600r/min
Hydraulic motor	Eaton
Triple pump	10-10-06ml/r
System pressure	16MPa	160bar=2320psi
System oil volume	60L/min
Hydraulic oil tank capacity	19.4L	4.3UK gal
Transport weight	300kg	1323Lb
Payload	500kg	1103Lb
Fuel tank capacity	5.5L	1.21 UK gal
Speed	3.5km/h (2.18mile/h)
Climbing angle	21%(12°)

Detailed Photos
Product Application

Production Process
Packaging & Shipping

FAQ

Q1: How long is the lead time for sample and mass production?
A: Sample will take 10days,mass production will need 25days.
Q2: What's the MOQ?
A: Usually the MOQ is 1set, but it will be adjusted accordingly if customers need OEM or ODM customization.
Q3: What customization can offer?
A: Color
B : Different engines (Changchai,Loncin, B&S, Honda, Yamaha,).
C: Labels customization.
D: Logo customization.
E: Package customization.
F: Manual books customization.
G: Structure components customization.
Q4: what's your warranty policy?
A: Normally warranty period is one year (non-artificial damage),we will send you new spare parts to replace by air For free. As for the engines, we will provide three years warranty for commercial engines , and one year warranty for Chinese brand engines.
Q5:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case.
