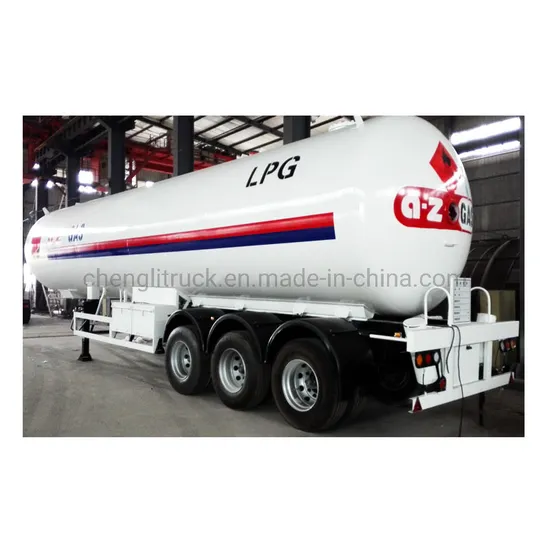

50cbm Pressure Tanker Carrier Gas Tank Semi LPG Trailer
| US$29,000.00-38,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Volume of Tank
50m3
Filling Density
0.42ton/M3, 0.5ton/M3, 0.55ton/M3
Filling Medium
Propane/Propylene/LPG
Axles
BPW, Fuwa or L1 Brand
King Pin
Jost 50 # or 90 #
Tank Material
Q345r, Q370r 16mnr
Landing Gear
Jost Brand
Certicatation
CCC, ISO, ASME
Loadin Capacity
25ton
Tire Type
12r22.5 Tubeless Tire
Transport Package
Nude Packing/ Waxed Bofore Shipment
Specification
CCC, ISO9001, ASME
Trademark
CLW
Origin
Hubei Suizhou
HS Code
8701200000
Production Capacity
1000 Unit/Month
Product Description
Heavy Duty Factory Sale 50M3 LPG Tank Semi Trailer| Specification of LPG Semi-Trailer Tanker 50 CBM | ||
| Tanker Essential Information | ||
| Volume of Tank (cbm) | 49.6 | |
| Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 | |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12372 | |
| Estimated Tare Weight (kg) | 15300 | |
| Payload(kg) | 25000 | |
| Total Weight(kg) | 36132 | |
| Wheelbase(mm) | 6800+1310+1310 | |
| Shell of Tanker | ||
| Products | Liquefied Petroleum Gas (propane) | |
| Fluid Property | Flammable | |
| Design Temperature(ºC) | -19ºC~50ºC | |
| Design Pressure(MPa) | 1.61 | |
| Corrosion Allowance(mm) | 1.00 | |
| Weld Joint Factor | 1 | |
| Materials of tank | Tanker body:Q345R,12mm, | |
| End plate:Q345R,12mm,double ellipse | ||
| Detection | ||
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC | |
| Flaw Detection | 100% Flaw detection | |
| Hydraulic Test(MPa) | 2.21 | |
| Manhole (As Customer's Requirement) | ||
| Quantity | 1;on top,DN450 | |
| Safety Valve(As Customer's Requirement) | ||
| Quantity | 2 | |
| Location | On the top of tanker | |
| Running System | ||
| Axles | 3*13T FUWA brand | |
| Tire | 12R22.5 Tubeless tire ,12 with one spare tire | |
| Landing leg | JOST | |
| King Pin | #50 or #90 | |
| Control System | ||
| Emergency Cut-off Valves | 2 | |
| Ball Valve | 2 | |
| Liquid Gauge | 1(Float level gauge,at the rear of the end plate ) | |
| Thermometer | 1 | |
| Pressure Gauge | 1 | |
| Accessories | ||
| Tool Box | 2 | |
| Wheel Carrier | 1 | |
| Fire Extinguisher | 2 | |
| Paint | As Customer's Requirement | |
| Service & Standard | ||
| Services | . We supply spare parts at factory price whenever needed; . Free guidance and train on how to operate tank trailer | |
| Standard | Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011 | |
1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid
Our factory could professionally manufacture 5000L-120000L LPG storage tank, 40000L-59600L LPG transport tanker trailer, LPG tanker truck, LPG filling truck, LPG gas station, LPG skid station.
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
