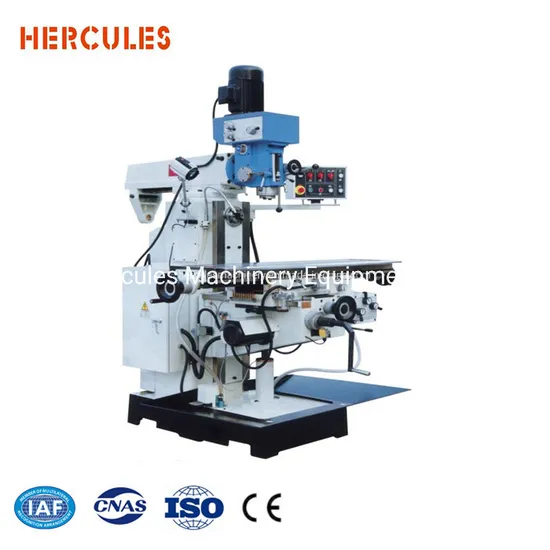

FRESADORA COMBINADA MODELO (UNIVERSAL Y TORRETA)
| US$4,700.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350CW
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Taper
ISO40 (H&V)
Table size
1120*280mm
Transport Package
Wood Pallet
Specification
1900*1750*2230
Trademark
Hercules
Origin
China
HS Code
8459699000
Production Capacity
20000/Year
Product Description
This milling machine is a kind of universal light duty metal processing machine,two functions of vertical and horizontal mills, it could proceed on medium or small parts of the plane, inclined plane, groove and spline, etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Specification:
Spindle taper ISO40(V,H)
Distance from spindle nose to table 90-410MM
Distance from horizontal spindle to table 0-300mm
Disance from spindle to column 200-700mm
Spindle speed range 8 steps 115-1750(V) r/min
12 steps 40-1300(H) r/min
Spindle travel 120mm
Max. Drilling dia. M16 mm
Head movement deg ±45
Table size 1120*280mm
Table travel X/Y/Z 600/260/300mm
Max.weight of workpiece 200kg
T-slot number/width/distance 3/14mm/70mm
Slide way X/Y/Z all dovetails
Horse power for main motorkW0.85/1.5(V)
2.2(H)
X axis driving motor 370w
Coolant pump power 40w
Overall dimensions 1660*1340*2130mm
N.W/G.W 1250/1350KGS
