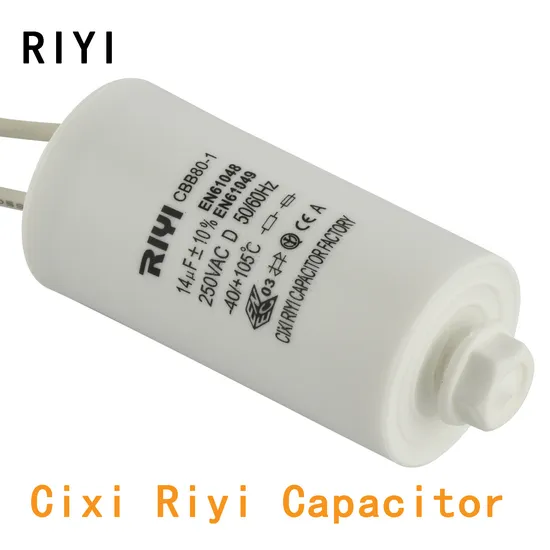

Cbb80 Capacitor 14UF 250V ENEC Lamp Capacitor for Lighting

Product Description

CBB80
Compensation Capacitor For Lighting Fixtures
1. Features and uses
The use of high-quality Germany Treofan high temperature polypropylene film made no sense of winding, high temperature plastic housing or the use
of light aluminum shell oxidation processing, the internal structure of device discharge resistors and fuses. The capacitor has advantages of low dissipation,
high insulation resistance, good self-healing character, and steady electricity performance, anti-striking current, strong over-carrying capacity,etc. Used in
high and low pressure sodium lamp, mercury lamp, metal halide lamp, since the role of power factor compensation.
2. conditions of usage
Elevation: the safe operation of the region in the altitude of not more than 3000m.
Applied voltage when the voltage remaining: to be filled more than 10% of rated voltage.
Dirty: to install to run the region free of conductive dust, no corrosive gas, no inflammable media.
Operation Temperature: Operation temperature range of capacitor -40 ~ 105 .
3. Technical parameter
Rated Voltage:250VAC
Rated frequency:50/60Hz
Capacitance range:2~50F
Capacitance deviation: ±5%
Tangent of loss angle tanδ≤0.2%(20ºC,100Hz)
Standing Voltage
Between terminals:T-T=2.0Un/2s (No flashover or permanent breakdown)
Between terminals and case: T-C≥2100VAC/2s( No dielectric breakdown or flashover)
Executing Standards: IEC61048,IEC61049,EN61048,EN61049,UL810
Company profile
Cixi Riyi Capacitor Factory is specializing in the production of metallized polypropylene film capacitors manufacturers, the company occupies 25,000 square meters, owns fixed assets of 30 million RMB, with an annual outputvarious types of capacitor capacity of 60 million, the company currently employs 280 people, including 12 engineers and technicians, quality control staff of 25 people. Strong technical force, advanced equipment, superb technology, detection means perfect, modern management model, based on market-oriented to the needs of customers for the purpose of continuous research and development and production of series capacitors, the enterprise passed the ISO9001:2015quality management System Certification and ISO14001:2015environment system certification, all kinds of products have the certification of CQC, TUV, VDE, IMQ, UL, CE and so on. Since its inception, work hard, pursuit of excellence and dedication to the electronics industry, power industry, household electrical appliance industry, and high-tech companies supporting services, has won the trust of our customers and co-operation, At present, the main supporting services with well-known brands of the domestic Haier, Midea, Galanz ,while about 50 percent of products exported to Europe, America and Southeast Asia countries and regions, Riyi Capacitor look forward to your cooperation for a better tomorrow.
Production Process
