ASME Portable and Safe Industrial T2 Feeding Tank

Product Description

Technical data and parameters

Vessel part			Parameter values
Operating pressure MPa			0.241~0.251
Design pressure MPa			0.930
Test pressure during manufacturing MPa		hydraulic	1.45
		pneumatic	-
Operating temperature, °С			-20 ~ 55
Design wall temperature, °С			324
Min allowable wall temperature of vessel, that is under design pressure , °С			-52
Operating medium			TEAL(PYROPHORIC)
Operating medium data	Class of danger		3
	Explosiveness		Yes
	Fire hazard		Yes
Corrosion/erosion allowance during assigned lifetime, mm			0
Capacity,m3			0,18
Empty vessel weight, kg			200
Max. weight of fluid filled*, kg			-
Assigned or estimated lifetime, years			25
Number of load cycles for the assigned or estimated lifetime			Max 1000
Group of vessel as per table 1 of GOST R 34347-2017			1
Work medium group as per TR CU 032/2013			1
Equipment category as per TR CU 032/2013			1
- for vessels with liquefied gases

Data about the main parts of the vessel

Vessel part name (shell, head, grid, pipes, jacket etc.)	Q-ty, pcs.	Dimensions, mm			Material
		Diameter internal or external	Wall thickness	Length (height)	Grade	Standard or technical requirements*
Обечайка внутреннего сосуда Shell of the inner vessel	1	O.D406	5	1258	TP304L	ASME SA312/SA312M-2023
Днище Head	2	O.D406	6 (мин. 5) 6 (min. 5)	50	SA-240 Gr.304L	ASME SA-240M-2023
Applicable in the Russian Federation and the states having voted for approval of the interstate standard as mentioned in the foreword.

Data about nozzles, flanges, covers and bolting

Item name	Q-ty, pcs.	Dimensions (mm) or number as per specification	Material
			Grade	Standard or technical requirements*
Vent pipr	1	DN 8 SCH STD	SA-312 TP304L	ASME SA312/SA312M-2023
Reinforcing pad	1	OD170 t=6	SA-240 304L	ASME SA-240M-2023
Pipe	1	DN 80 SCH80S L=97	SA-312 TP304L	ASME SA312/SA312M-2023
Flange	1	DN 80 ANSI 300# B=73.66	SA-182 F304L	ASME B16.5-2020
Flange	1	DN 40 ANSI 150# B=36.4 Y=165	SA-182 F304L	ASME B16.5-2020
Pipe	1	DN 100 SCH40S L=112	SA-312 TP304L	ASME SA312/SA312M-2023
Flange	1	DN 100 ANSI 300# B=102.26	SA-182 F304L	ASME B16.5-2020
Flange	1	DN 20 ANSI 300# B=19.5 Y=160	SA-182 F304L	ASME B16.5-2020
Flange	1	DN 20 ANSI 300# B=19.5 Y=132	SA-182 F304L	ASME B16.5-2020
Flange	1	DN 20 ANSI 300# B=19.5 Y=172	SA-182 F304L	ASME B16.5-2020
Base plate	2	t=16	SA-240 Gr.304L	ASME SA-240M-2023
Rib plate	4	t=16	SA-240 Gr.304L	ASME SA-240M-2023
Pad	2	t=5	SA-240 Gr.304L	ASME SA-240M-2023
Lifiting lug	2	t=18	SA-240 Gr.304L	ASME SA-240M-2023
Plate	2	t=10	SA-240 Gr.304L	ASME SA-240M-2023
Nsulation support ring	2	t=6	SA-240 Gr.304L	ASME SA-240M-2023
Applicable in the Russian Federation and the states having voted for approval of the interstate standard as mentioned in the foreword.

SCOPE OF WORK
Mechanical and Fabrication guarantee
Design including strength calculation (including erection condition) stress analysis and detail design based on applicable Codes, Local Regulation, Project Specifications and Standards
Thermal Design (Thermal Rating)
All technical certifications required for design work as per local regulations
Stability check (during transport, lifting and hydrostatic test) and loading data for base design
Structural analysis for main body and its support for operation load
Material procurement
Material Test and Certificates as per applicable Code and Specifications
Manufacturing
Post weld heat treatment as per code and specification
PMI (Positive Material Identification)
All NDEs as per Project Specification
Welding procedure qualification test
WPS & PQR
Welder performance test
Hydrostatic test at BlDDER shop as per Code & Local Regulations, Specifications.
Installation work for vessel internals supplied by Bidder
External surface preparation and painting as per Specification

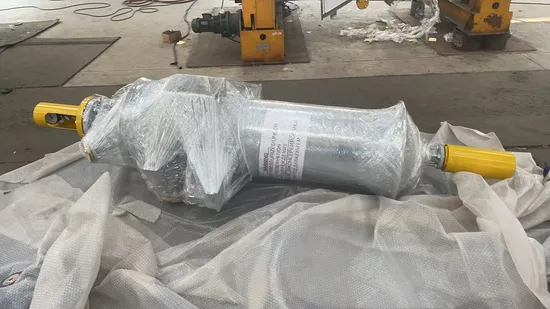

Packing and marking as per project specifications
Preservation during transportation and storage (Including Seaworthy packing for oversea manufacturer)
Internal protection from moisture: N2 ChargeAll activities to meet requirements of Data Sheets, Specifications, Codes and Standards, Local Regulations


1. Q:Are you a manufacturer or trading company?
A:We are a manufacturer with over thirty years of experience in China.
2.Q:Can we visit your factory before placing orders?
A: Sure, warmly welcome to our factory!
3.Q:What's the information needed if I send one inquiry ?
A : Please tell us the working conditions, mediums,temperature ,pressure, equipment ' s material,size,quantity, and other special requests.
4.Q:How does your factory do quality control?
A: Quality is priority ,we make relevant strict testing before delivery.
Our factory has already obtained ISO9001 quality and ISO 14001
Environmental management system certificate.
