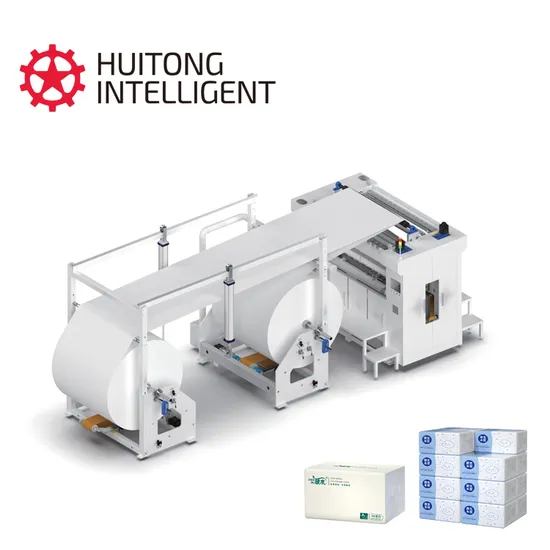

Fully Automatic High Speed V-Fold Extractor Facial Tissue Folding Machine Facial Tissue Paper Making Machine

Product Description

Automatic high speed V-fold extractor facial tissue folding machine Product Description
ENHANCED PRODUCT DESCRIPTION:
Revolutionary Facial Tissue Paper Production Line with Advanced Plastic Type Transfer System for Maximum Efficiency ♦Application: Soft tissue, box tissue, cream tissue;
♦Features: Neat from the first sheet to the last sheet, one-key changefrom 30 sheets to 200sheets(300 sheets); compatible for 11gtwo-ply tissue (high difficulty) till five-plytissue,
♦Main parameters: Production speed maximum 150 meters/minute
♦The production line can design the best solution basedon the customer's workshop site conditions, production capacityand product requirements Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!
1. The paper is hoisted by air and driven by an independent motor;
2. four-side positioningembossing, one-key change of specifications (optional).
3. Unwinding speed adjustment: Adjust the speed independently on the operation interface 4.Folding mode: vacuum adsorption V-shaped staggered folding
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Sophisticated Functions ♦The maximum operational speed of the Automated V-fold extractor facial tissue folding machine , achieving an impressive rate of 150 m/min ♦The beautiful appearance of the finished product enhances itsoompetitivenesThe simple operation for production changingenhanoes production efficiency,Multi-spot inspection ensures saferunning of the equioment.
Remarkable Features: 1. Seamless automatic counting and output for streamlined processing;
2. Versatile equipment offering 6-10 lines of varied models, providing customers with a broad range of choices. 3. Our 6-line facial tissue folding machine is perfectly aligned with current market demands, outperforming 2-4 line alternatives. 4. An independent valve control system for the knife groove ensures optimal adsorption and precise side-by-side folding. 5. State-of-the-art operation system featuring imported PLC and frequency conversion speed regulation for superior control.
Comprehensive Machine Information:
Key Technical Parameters:

Machine model	HT-VMJ01
Scope of application	V Fold tissue paper, non-woven fabric
Control mode of distributing mechanism	Seryo controlled drive
Jumbo Roll width (mm)	1500-2500mm
Jumbo Roll Max size range (mm)	dia.:1500mm.width:2050mm
Choice of paper tissue folding size (unfold)	170/175/180/190
Out put (8 hours)	8000~10000Kg
Embossing unit	Steel to paper or steel to steel, Steel to steel edge embossing ,independent pneumatic regulation
Compressed air(MPA)	Bring your own
Options	Shaping unit,Turning off unit, Ultrasonic spray humidification unit,Buffer paper holder unit
Count set	Touch screen Settings
