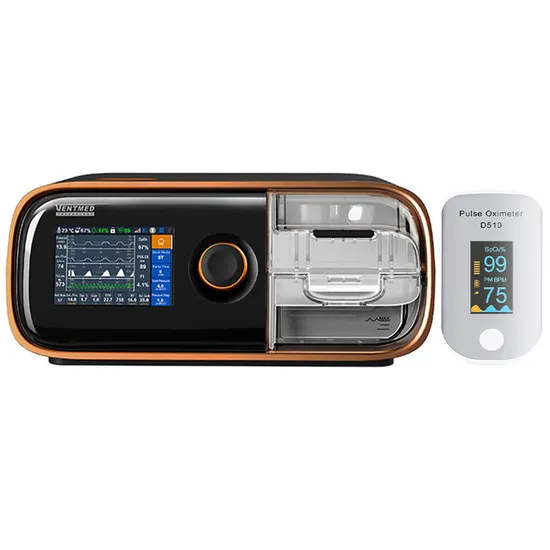

Home Use Bipap Breathing Therapy Equipment with Pluse Oximeter for Copd and Osa Df-30V-Hm

Product Description

SaferSmart alarm safer to use-Mask falling off,apnea,abnormal pressure.-Multiple alarm for tubing abnormalities.-Guarantee patient treatment effects.
SmarterBuilt-in IOT card-Upload usage data to the cloud platform in real time.-Interpret usage data through the background intelligent AI diagnosis systemMore capableBluetooth connection-Connect Ventmed pulse oximeter via Bluetooth.-Pulse and blood gas data can be viewed on the ventilator interface.More comfortableHeated breathing tube more comfortable-Tubing surround heating technology,heating more evenly.-Built-in temperature sensor enables precise adjustment of the mask end.-Temperature plus or minus 10-30ºC optional.More convenientIntuitive data display view more convenient-Added a variety of new record, no need to connect to a computer.-Sleep records can be viewed on theventilator interface.-AHI report,sleep record.-Respiratory event count report.Leak compensation--Higher trigger sensitivity.--Reduced internal resistance for higher ventilation efficiency.
1. Description:
The VentMed Respiratory system is an Auto CPAP device designed for the treatment of adult Obstructive Sleep Apnea (OSA)/Hhypopnea/Snoring.
2. Features:
1. More than 20hr real-time data and more than 1 year used records can be saved.
2. Showing airflow and pressure waves on the screen.
3. TF card for data communication.
4. Combined smart technologies.
5. Contemporary and stylish design for bedroom appeal.
6. EPR(expiratory pressure relief).
7. Auto-Leak Compensation.
8. Auto-Altitude compensation.
9. Alarm for cut down the power.
10. Independent airflow channel.
11. Huge display, 3.5" TFT Screen, show airflow and pressure on the screen.
12. Parameters lock: all the parameters cannot be changed after setting.
3. Packing List1. Host Device with Integrated Humidifier
2. Full Face Mask or Nasal Mask (Optional)
3. 5 Pieces of Filter Cotton
4. Air Tubing
5. Water Tub
6. TF Card
7. Measuring Cup
8. Power Supply Unit
9. Carry Package
10. User Manual
11. Carton Box
4. Specification

Product Model	DF-30V-HM
Work mode	CPAP, AUTO, Auto S, S, T, ST, APCV
Expiratory pressure	4cmH2O-30cmH2O
Inspiratory pressure	4cmH2O-30cmH2O
Tubing heating function	Yes
Mobile network	Yes
Data cloud platform	Yes
Pressure rise/fall time	100ms-900ms
Pressure difference	2cmH2O~10cmH2O
I/E ratio	10%-90%
I/E sensitivity	5 levels
Backup rate	5bpm-60bpm, step size is 1bpm, error + 1bpm
Target tidal volume	200ml~1200ml, in steps of 10ml
Ramp time	0-60min
Noise	noise<29dB under 10cmH20 pressure
Data storage	TF card
Screen (inch)	3.5 inch color display
Heating tubing temperature	10ºC-30ºC adjustable, step 1ºC
Humidifier adjustment	heating and humidification, level 1-5 adjustable
Heating module preheating	when preheating is on, in standby state,the device will automaticallyheat according to the setted temperature
Flight mode	when flight mode is on,the device will turn off the mobile network signal transceiver and cannot received or transmit signals
Alarm	mask fall off alarm,asphyxia alarm,pressure abnormality,tubing abnormality
Bluetooth	connectable to pulse oximeter
Weight	1.7KGS
Size	266.8*172.5*118.5mm
Power	100-240V~50/60Hz 1.5A Max
