High Precision BT50 Horizontal CNC Milling Machining Center HMC630

Product Description

Product Description

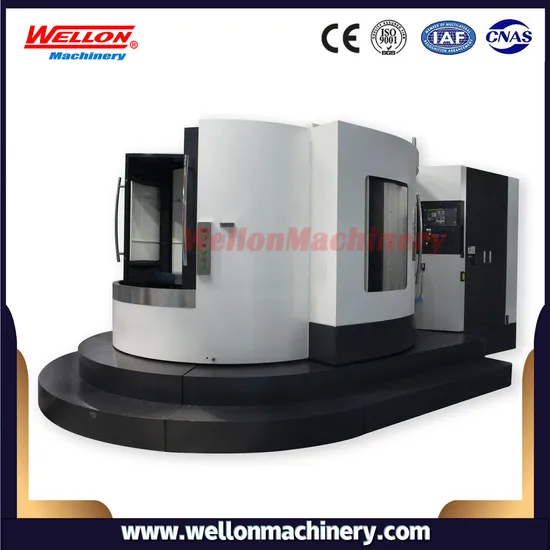

High Precision BT50 Horizontal CNC Milling Machining Center


Detailed Photos

Hot Sale Products
Product Parameters

Technical parameters:

		HMC630	HMC630/1	HMC630/2	HMC630/3
		Single table	Double table	Continuous indexing single table	Continuous indexing double table
Worktable	Worktable size	630×700mm	630×700mm	630×700mm	630×700mm
	Worktable number	1	2	1	2
	Worktable indexing	1°X360	1°X360	0.001°	0.001°
	Worktable transmission	240	240	160	160
	changer worktable transmission	/	240	/	240
	Changer worktable structure	/	Rotary type	/	Rotary type
	Changer worktable time	/	24s	/	24s
	Worktable loading capacity	950kg	950kg	950kg	950kg
	Max. Swing diameter of workpiece	¢1100mm	¢820mm	¢1100mm	¢820mm
Travel	Worktable movement left and right(X Axis)	1050mm	1050mm	1050mm	1050mm
	Spindle head movement up and down(Y Axis)	750mm	750mm	750mm	750mm
	Column movement forward and backward (Z Axis)	900mm	900mm	900mm	900mm
	Distance from spindle center to worktable surface	120~870mm	0~750mm	120~870mm	0~750mm
	Distance from spindle nose to worktable center	130~1030mm	130~1030mm	130~1030mm	130~1030mm
Spindle	Max. Spindle speed	6000rpm	6000rpm	6000rpm	6000rpm
	Spindle taper	BT50-190	BT50-190	BT50-190	BT50-190
	ATC	24 (30/40)	24 (30/40)	24 (30/40)	24 (30/40)
Motor	Spindle motor	15kw	15kw	15kw	15kw
	X,Y,Z axis servo motor	22/30/30 Nm	22/30/30 Nm	22/30/30 Nm	22/30/30 Nm
	B axis servo motor	8 Nm	8 Nm	12 Nm	12 Nm
	APC servo motor	/	8 Nm	/	8 Nm
Leadscrew (Taiwan)	X axis, Y axis(Diameter×Pitch)	40×12	40×12	40×12	40×12
	Z axis(Diameter×Pitch)	50×12	50×12	50×12	50×12
Rapid speed	X , Y, Z axis	24m/min	24m/min	24m/min	24m/min
	B axis	10r/min	10r/min	10r/min	10r/min
Positioning accuracy	X , Y, Z axis	0.01	0.01	0.01	0.01
	B axis	10″	10″	10″	10″
Repositioning accuracy	X , Y, Z axis	0.006	0.006	0.006	0.006
	B axis	5″	5″	5″	5″
Machine overall dimensions		3010×2690×2485	4225×2690×2485	3010×2690×2485	4225×2690×2485
Machine net weight		100000kg	11000kg	10000kg	11000kg

Standard accessories:
Fanuc 0i-MF controller 8000rpm belt type spindle from Taiwan
24 tool disc type magazine from Taiwan
Chain type chip conveyor*1+Screw type chip conveyor*2
Ball leadscrew from Taiwan Hiwin/PMI
3-axis Linear guideway from Taiwan Hiwin/PMI
Full closed covers
MPG
Air conditioner in cabinet
USB+ Ethernet Interface
Safety doors
High pressure flushing system
Work lamp +Tir-color alarm lamp
Air gun+water gun
Automatic lubricating
Coolant system
Nitrogen balance system
Tools and toolbox
Optional accessories:
Spindle oil cooling
Renishaw tool probe TS27R
Renishaw workpiece measurement device OMP60
