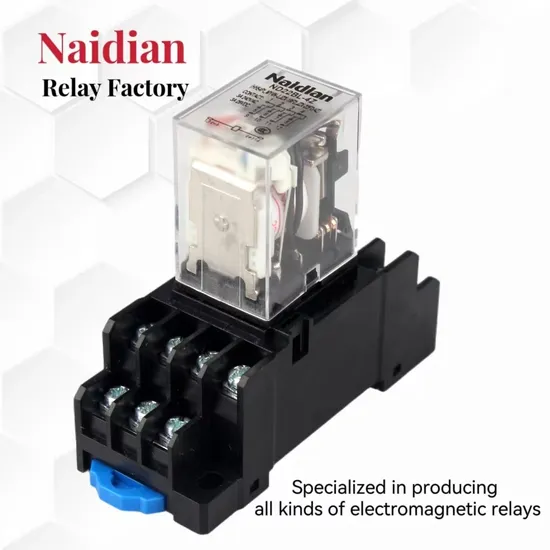

Relay Manufacturer Produce Industrial 14pins 5A My4 Hh54p Miniature Electromagnet Relay

Product Description

Contact Parameter

Contact Form	2Z, 2C, 3Z, 3C, 4Z, 4C
Contact Resistance	≤50mΩ(1A 6VDC)
Contact Material	Silver Contact
Contact Load	5A 250VAC/28VDC 3A 250VAC/28VDC

DC Coil Specification Table

Rated Voltage	Suction Voltage	Release Voltage	Coil Resistance
VDC	≤VDC	≥VDC	Ω±15%
5	4.0	0.5	28
6	4.8	0.6	40
9	7.2	0.9	90
12	9.6	1.2	160
24	19.2	2.4	600
48	38.4	4.8	2650
110	88.0	11.0	13500
220	176.0	22	43000

AC Coil Specification Table

Rated Voltage	Suction Voltage	Release Voltage	Coil Resistance
VAC	≤VAC	≥VAC	Ω±15%
6	4.8	1.8	12
12	9.6	3.6	45
24	19.2	7.2	180
36	28.8	10.8	500
48	38.4	14.4	750
110	88.0	33.0	4300
220	176.0	66.0	14300
220/240	192.0	72	16000
380	304	114	32000

Dimension Bottom View
Certifications
Company Profile
------------------------------------------------------------------------------------------------- Established in 1989, Naidian Group Co., Ltd. is located in Liushi where is regarded as low voltage electrical equipment production base of China, specializing in manufacturing and selling industrial electronic products. At the same time, we are a pluralistic modern enterprise integrating scientific research, trade, finance and investment together. We mainly produce all types of relays, such as time relay, miniature relay, general purpose relay, PCB relay, liquid level relay, solid state relay, high power relay, motor protector, and counter, which currently sell well in domestic market, and are exported to South America, the Mid East, Southeast Asia, Europe, Africa and other regions around the world. We have received praises from customers. ISO9001 quality management system has been strictly operated in our corporation. In addition, some products have passed the attestation of CCC, CE, and UL. Our company also has introduced advanced equipment for constantly research and development of new products. Reliable quality and excellent service have contributed to our company's good reputation. We will insist on providing better service for our customers and others who concern about us and creating mutual benefits with you.
FAQ
------------------------------------------------------------------------------------------------- 1. Who we are? We are based in Zhejiang, China, start from 1989,sell to Domestic Market(80.00%),Mid East(20.00%). There are total about 51-100 people in our office. 2. How we guarantee The quality? Always pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Electromagnetic miniature relay,Time control relay,Electrical network protection relay 4. What services can we provide? Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T; Language Spoken:English,Chinese
