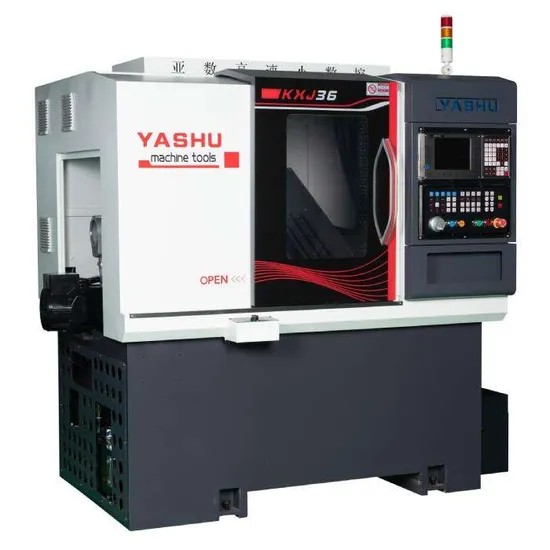

Chinese CNC Lathe Machine for Turning and Milling
Basic Info.
Model NO.
KX-36J
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Weight (Kg)
1500
Max. Turned Length (mm)
180
Spindle Bore(mm)
36 mm
After-Sales Service Provided
Free Spare Parts
Dimension(L*W*H)
1400*1200*1650
Machining Capacity
Light Duty
Warranty of Core Components
1 Year
Key Selling Points
Automatic / Good Price / High Percision
Processing Type
Metal Processing Machine
Voltage
380V
Max. Swing Diameter (mm)
350mm
Travel (X Axis)(mm)
600 mm
No. of Spindles
Single
Max. Swing Diameter
350mm
Type
Horizontal
Transport Package
Standrad Export Package
Trademark
Yashu
Origin
Guangdong, China
HS Code
8458110090
Production Capacity
500 Piece/Pieces Per Month
Product Description
KX-36J Suitable for mass production of copper, iron, aluminum, stainless steel bar material within 35mm, and automatic mass production of open forging and punching parts within 50mm, can also be installed hydraulic chuck to achieve the production of single parts within 250mm. Adopt a number of patented technologies such as high rigidity, anti-deformation structure, suitable for machining unilateral cutting amount within 2mm, precision tolerance within ±0.01mm, finish within 1.6 products. Widely used in hard rail CNC lathe, with 36J CNC lathe small parts to replace the application, to improve the efficiency and cost-efficiency ratio.Product Description
| Application scope of processing | Normal Use Value | Maximum Value | |||||||
| Working ability | Spindle bore | φ35mm | φ35mm | ||||||
| Maximum particle diameter (disc type) | 250mm | 300mm | |||||||
| Maximum length of workpiece to be processed | 210mm | 230mm | |||||||
| Single side cutting of stainless steel | 2mm | 3mm | |||||||
| Repositioning accuracy | ±0.01mm | ||||||||
| Smooth finish | 1.6RA | ||||||||
| Center height of tool rest | 40mm | ||||||||
| Turning diameter | φ250mm | ||||||||
| Square tool specification | 16mm | ||||||||
| Travel | X axis travel | 600mm | |||||||
| Z axis travel | 230mm | ||||||||
| Feed | X-axis fast moving velocity | 25m/min | 30m/min | ||||||
| Z-axis fast moving velocity | 25m/min | 30m/min | |||||||
| X axis servo power | 1.2KW | ||||||||
| Z axis servo power | 1.2KW | ||||||||
| Spindle | Spindle speed | 3500r/min | 4000r/min | ||||||
| Spindle motor power | 3.7KW | ||||||||
| Spindle nose | A2-4 | ||||||||
| Support hydraulic chuck size | 5 inch | 6 inch | |||||||
| Dimensional & weight | Dimensions | 2050*1530*1950 mm | |||||||
| Weight | 1800KG | ||||||||
