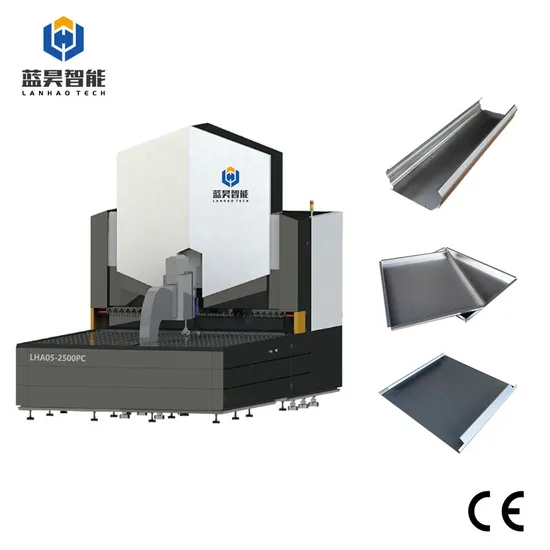

Metal Sheet Fabrication Best Selling Lanhao Panel Bender China CNC Bending
| US$120,000.00-125,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LHA-2500PC
Warranty
1-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Panel Bender
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Panel Bender
Transport Package
Sea
Specification
2500PC
Trademark
LANHAO
Origin
China
Product Description
Product Parameters| LHA-2500PC-03 Technical parameters | |
| Feeding structure | Pressing arm |
| Work table structure | brush |
| System minimum accuracy | 0.001mm |
| Max bending speed | 0.2 second/time |
| Max feeding speed | 90m/min |
| Max.bending width | 2500mm |
| Max.Bending size | L 2500mm X W 1250mm |
| Max. Bending height (The maximum bending height after customization can reach 300mm) | 170mm (customizable) |
| Min. Bending height | 3mm |
| Min.arc radius | 0.5mm |
| Rated power | 380V |
| Motor power | 79KW |
| Average power | About 2.9 KW |
| Noise | About 50 dB |
| Machine size | L565cm X W300cm X H340cm |
| Total weight | About 19 tons |
| User operating environment | Win7 or above system |
| Max. Bending width | UTS 515N/mm2 304 stainless steel 1.5mm UTS 410N/mm2 cold panel 2.0mm UTS 265N/mm2 aluminum panel 3.0mm |
| Min. Panel width | 0.35mm |
| Four side forming min. Inner size | About 140mmx190mm( excluding inverted folded side) |
| Double side forming min. Inner size | About 140mm |
| Bending angle | 0-180 degree |
| Axis | 15 |
Bending Cases
Certifications
Company Profile
