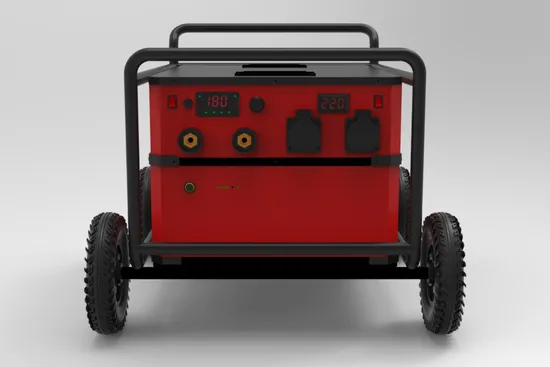

M5018 Li-ion Battery Welder 5120wh 5000W Mobile Power All-in-One Machine
Basic Info.
Model NO.
M5018
Frequency Range
High Frequency
Electric Current
DC
Work Form
Moving-Coil
Type
Argon Arc Welder
Capacity
5120wh
Battery Parallel
Support
Transport Package
Foam Plus Carton
Specification
Not Available
Trademark
LKPOWER
Origin
China
HS Code
8515390000
Production Capacity
5000PCS/Year
Product Description
Product Parameters| Net Weight (Kg) | 60 KG |
| Gross Weight (Kg) | 67KG |
| Product dimensions (mm) | 700*500*500 |
| Protection grade | IP21 |
| Cooling type | Air Cooling |
| Battery type | LiFePO4 |
| Ampere-hour | 100 Ah |
| Rated voltage | 51.2 V |
| Capacity | 5120 Wh |
| Battery parallel | Support (Expandable to 15360 Wh) |
| Cycle life | 3000 times |
| Charge temperature range | 0~50 ºC |
| Discharge temperature range | -10~60 ºC |
| Protection mechanism | Over-voltage, under-voltage, over-discharge, differential pressure, high-temperature, low-temperature, over-current, short-circuit, pre-charge, pre-discharge, etc. |
| Charger type | Integrated |
| Input voltage range | 180~240 Vac |
| Input voltage frequency | 50/60 Hz |
| Rated output power | 3000 W |
| Charger type | Integrated |
| Input voltage range | 120~450 Vdc |
| Input current limited | 10.5 A |
| Rated output power | 3000 W |
| Output Wave | Pure sine wave |
| Rated output voltage | 100/110/120/220/230/240 Vac |
| Rated output power | 5 KW |
| Peak output power | 10 KW |
| Output frequency | 50/60Hz (Inverter Mode) Same as input mains(UPS Mode) |
| Efficiency | 92% |
| No load loss | <50 W |
Packaging & Shipping Products are shipped in custom foam and cardboard boxes.
Shipping costs are at the customer's expense.
FAQ 1.How long does the battery last?
The battery has 3000+ cycles.
It can weld 146 welding rods of 2.5mm in diameter and 350mm in length on a single charge.
2.Can the battery pack be purchased separately?
Yes. M5018 supports external battery packs.
3.What is its function?
MMA.
4.What is its rated output power?
5kW. And its peak output power is 10kW.
