Double Layer Colored Roof Sheet Roll Forming Machine

Product Description

Double layer colored roof sheet roll forming machine
Roof tile making machine,Roof Use and Tile Forming Machine steel roof roll forming machine for sale
Double layer colored roof sheet roll forming machine
1. Specifications of double layer roof making machine
1).Main Techincal Data:

1.	Model Number	YX21-860	YX17-840
2.	Size	6800*2000*1300mm	6800*2000*1300mm
3.	Weight	6500KGS	6500KGS
4.	Motor Power	5.5KW	5.5KW
5.	Hydraulic Power	1.5KW	1.5KW
6.	Voltage	380V/50HZ/3PH	220V/60HZ/3PH
7.	Forming Steps	14 steps	8steps
8.	Processing Speed	20-25m/min	20-25m/min
9.	Thickness	0.3-0.6mm	0.3-0.6mm
10.	Feeding Material Width	1000mm	1000mm
11.	Effective Width	860mm	840mm
12.	Height of Roofing	24mm	24mm

2). Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen
(5).Hydraulic Forming Cutter;
(6).Tools;
(7).Operation Manual.

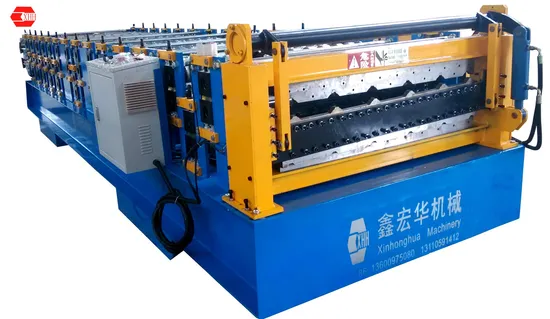

2. Pictures of double layer roof making machine
3.Our company view
Xiamen XinHongHua Machinery Co.,LTD.founded in 2004, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability.Our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,Floor Decking Machine and Highway Rail Forming Machines, etc.
4.Our advantage
a.We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people.
b.Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
c.PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service.
e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
