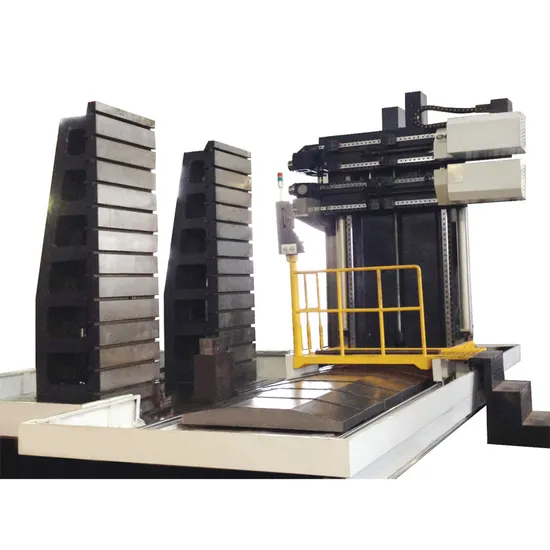

Zjg Series Tube Plate Drilling Machine (ZJG08-6030)

Product Description

ZJG SERIES ZJG08-6030
-Product application
Deep hole drilling machines are mainly used in the industries as following:
-Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump,etc..
-Automotive industry: cylinder, fuel supply system and other parts
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.

ZJG series tube plate CNC deep-hole drilling machine is one of the deep-hole automatic control machine tools for special purpose.
There are both single axis processing and multiple axis processing function. The CNC programming automatic processing ensures the good quality such as the spacing of hole, diameter tolerance, verticality, harshness, etc. It's totally different from the traditional processing ways of multiple collections, which extremely improves the production capacity. There is also optional chip conveyor: outside chip conveyor gun drill or inner chip conveyor BTA.
ZJG series of tube plate CNC deep-hole drilling machine tools are suitable for varies of tube plate processing, such as tube heat exchanger, pressure vessel, condenser, evaporator, boilers, central air conditioning, seawater desalination system, oil refining system, etc.
Technical Specifications

Items			ZJG08-6030
Processing Capacity	Diameter of hole drilling	Gun Drill	10~20mm
		BTA	20~40mm
	Depth Range of the Hole		800mm
	Maximum Diameter		6000mm
Processing Range	X Axis Processing Range		6000mm
	Y Axis Processing Range		3000mm
	Z Axis Processing Range		850mm
Spindle	Qty of Spindle		2pcs(Optional 1~4pcs)
	Centerline Spacing (adjustable)		170-220mm
	Spindle Speed		100-3000r/min
	Feed Speed		0-3000mm/min
Power	Spindle Motor		15kw
	X Axis Servo Motor		40N.m
	Y Axis Servo Motor		40N.m
	Z Axis Servo Motor		22N.m
	W Axis Servo Motor		22N.m
	V Axis Spacing Servo Motor		30N.m
	Total Power		40kw
Cooling System	Pressure Range		2-10MPa
	Flux Range		10-200L/min
	Capacity of Oil Tank		2000L
Working Table	Surface Size		6000×4000mm
	Burdening		40T
	Size of Standing Board		1400×800×6000 mm
	Qty of Standing Board		2pcs
Machine Tool	Weight		80T
	Measurement		6500×12000mm
	Height of Machine Tool		6000mm
